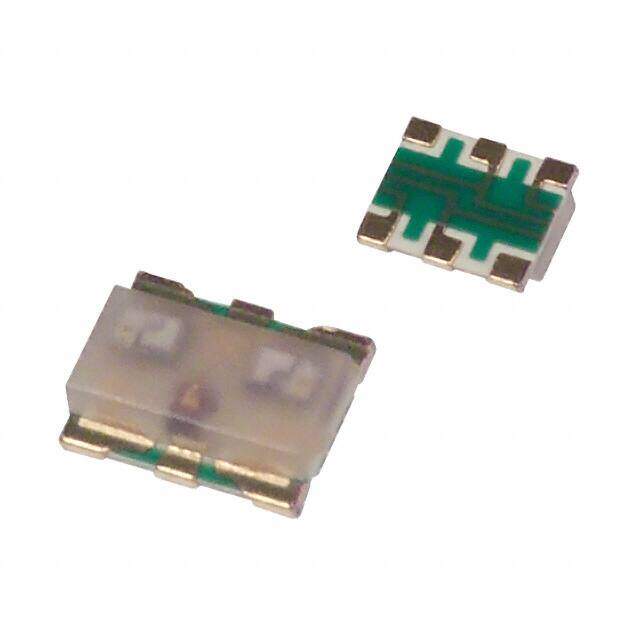

LNJ717W83RAS
RoHS
/
Package 6-SMD, No Lead; TSS-3
Category Optoelectronics / LED Indication - Discrete
Description
LED BLUE/GRN/ORG TSS LED SMD
PDF
/
Inventory: 4002
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Reverse Voltage-Max 4V
Forward Voltage-Max 3.7V
Forward Current-Max 0.02A
Wavelength - Peak 470nm Blue 525nm Green 630nm Orange
Millicandela Rating 35mcd Blue, 90mcd Green, 45mcd Orange
Luminous Intensity 45 mcd
Lens Size 2.10mmx1.15mm
Lens Style Rectangle with Flat Top
Current - Test 5mA Blue 5mA Green 10mA Orange
Optoelectronic Device Type TRIPLE COLOR LED
Voltage - Forward (Vf) (Typ) 3.1V Blue 3.1V Green 2V Orange
Configuration Independent
Operating Temperature (Min) -30°C
Operating Temperature (Max) 85°C
Base Part Number LNJ717
Reach Compliance Code unknown
Number of Functions 1
Packing Method BULK
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Color Blue, Green, Orange
Number of Terminations 6
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
Size / Dimension 2.10mm Lx1.60mm W
Published 2004
Packaging Tape & Reel (TR)
Dimensions
Height 550μm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Shape RECTANGULAR
Package / Case 6-SMD, No Lead; TSS-3
Mounting Type Surface Mount
Mount Surface Mount
