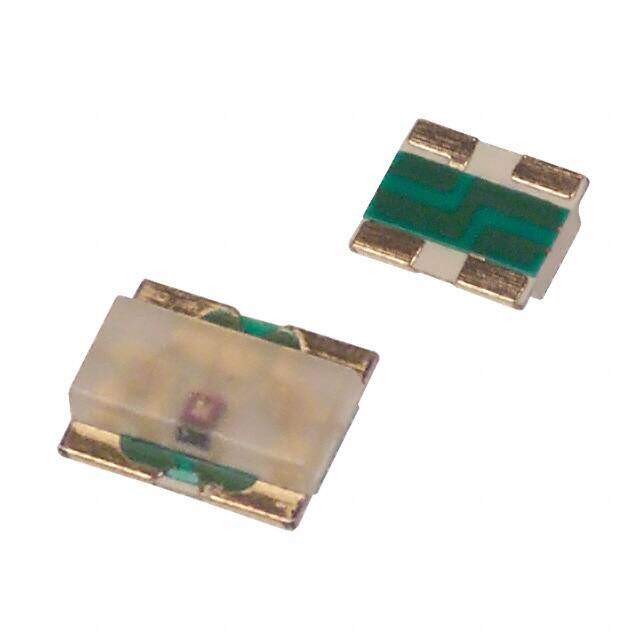

LNJ717W80RA
RoHS
/
Package 4-SMD, No Lead, TSS-3
Category Optoelectronics / LED Indication - Discrete
Description
LED SOFT ORG/PURE GREEN/BLUE TSS
PDF
/
Inventory: 4353
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead, TSS-3
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2004
Size / Dimension 2.10mm Lx1.60mm W
JESD-609 Code e0
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
Terminal Finish Tin/Lead (Sn/Pb)
Color Blue, Green, Orange
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Packing Method BULK
Number of Functions 1
Reach Compliance Code unknown
Base Part Number LNJ717
Operating Temperature (Max) 85°C
Operating Temperature (Min) -30°C
Configuration Common Anode
Voltage - Forward (Vf) (Typ) 3V Blue 3V Green 1.95V Orange
Optoelectronic Device Type TRIPLE COLOR LED
Current - Test 5mA Blue 5mA Green 10mA Orange
Lens Style Rectangle with Flat Top
Lens Size 2.10mmx1.15mm
Luminous Intensity 45 mcd
Millicandela Rating 10mcd Blue, 34mcd Green, 23mcd Orange
Wavelength - Peak 470nm Blue 525nm Green 615nm Orange
Forward Current-Max 0.02A
Forward Voltage-Max 2.5V
Reverse Voltage-Max 4V
Dimensions
Height 550μm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
