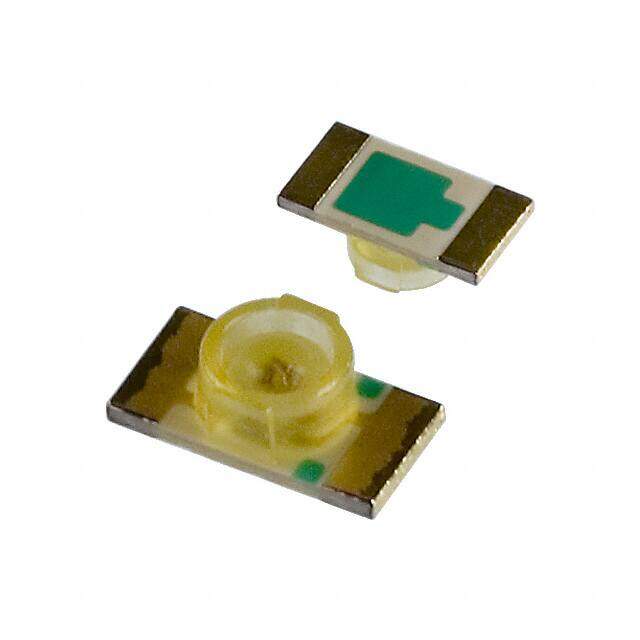

LNJ416Q8YRA
RoHS
/
Package 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED, SMT, TOP FIRE+MICRO LENS, AMBER
PDF
/
Inventory: 9703
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 1.1mm
Technical
Dominant Wavelength 590 nm
Reverse Voltage-Max 4V
Number of LEDs 1
Luminous Intensity 3.3 mcd
Lens Size 1.70mm Dia
Lens Style Round with Flat Top
Current - Test 10mA
Forward Current 10mA
Optoelectronic Device Type SINGLE COLOR LED
Voltage - Forward (Vf) (Typ) 2V
Configuration Standard
Case Code (Imperial) 1206
Case Code (Metric) 3216
Base Part Number LNJ*16
Reach Compliance Code unknown
Number of Functions 1
Packing Method BULK
Subcategory Visible LEDs
Color Amber
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn/Pb)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e0
Size / Dimension 3.20mm Lx1.60mm W
Published 2001
Packaging Tape & Reel (TR)
Physical
Number of Pins 2
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Mount Surface Mount
