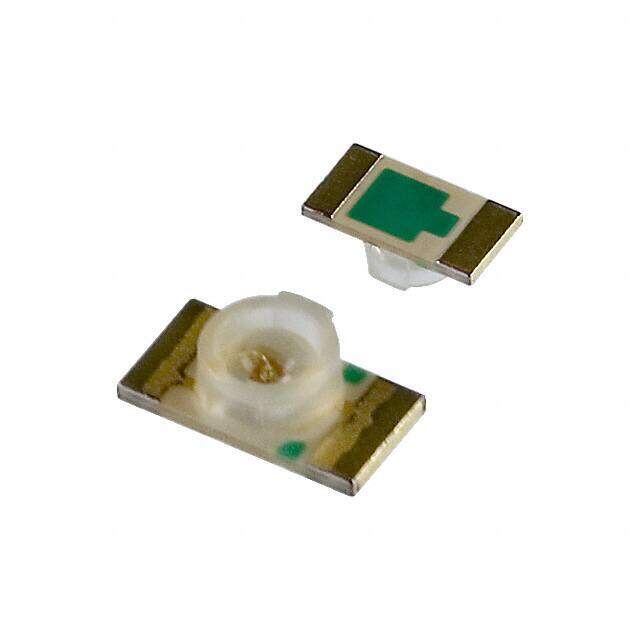

LNJ316C8TRA image
Favorite
LNJ316C8TRA image
Favorite
RoHS
/
Package 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED, SMT, TOP FIRE+MICRO LENS, GREEN
PDF
/
Inventory: 8538
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Height 1.1mm

Technical

Dominant Wavelength 565 nm
Reverse Voltage-Max 4V
Luminous Intensity 8.8 mcd
Lens Size 1.70mm Dia
Lens Style Round with Flat Top
Current - Test 10mA
Forward Current 10mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 104 deg
Voltage - Forward (Vf) (Typ) 2.03V
Configuration Standard
Case Code (Imperial) 1206
Case Code (Metric) 3216
Base Part Number LNJ*16
Reach Compliance Code unknown
Number of Functions 1
Packing Method BULK
Subcategory Visible LEDs
Color Green
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn/Pb)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Obsolete
JESD-609 Code e0
Size / Dimension 3.20mm Lx1.60mm W
Published 2001
Packaging Tape & Reel (TR)

Physical

Number of Pins 2
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Mount Surface Mount
