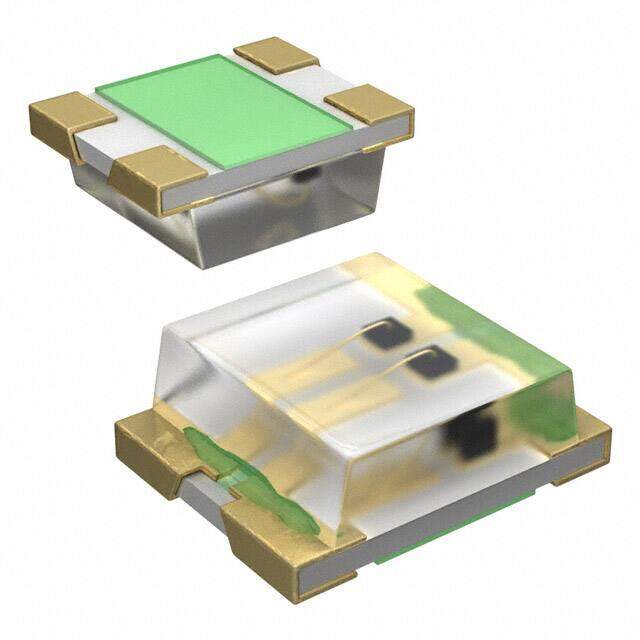

LNJ115W8HRA
RoHS
/
Package 0605 (1613 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED BLUE/RED DIFF TSS LED SMD
PDF
/
Inventory: 4816
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0605 (1613 Metric)
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2004
Size / Dimension 1.60mm Lx1.25mm W
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
Color Blue, Red
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Terminal Pitch 1.3mm
Reach Compliance Code unknown
Base Part Number LNJ115W
Case Code (Metric) 1613
Case Code (Imperial) 0605
Operating Temperature (Max) 85°C
Operating Temperature (Min) -30°C
Configuration Independent
Voltage - Forward (Vf) (Typ) 3.2V Blue 1.72V Red
Optoelectronic Device Type DUAL COLOR LED
Current - Test 5mA Blue 10mA Red
Luminous Intensity 6.7 mcd
Millicandela Rating 8.4mcd Blue, 6.7mcd Red
Lens Transparency Diffused
Wavelength - Peak 470nm Blue 655nm Red
Lens Color White
Forward Current-Max 0.02A
Dimensions
Height 550μm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
