LNJ115W89RA
RoHS
/
Package 0605 (1613 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED, SMT, TOP FIRE, ORANGE+GREEN
PDF
/
Inventory: 6977
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0605 (1613 Metric)
Number of Pins 4
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2000

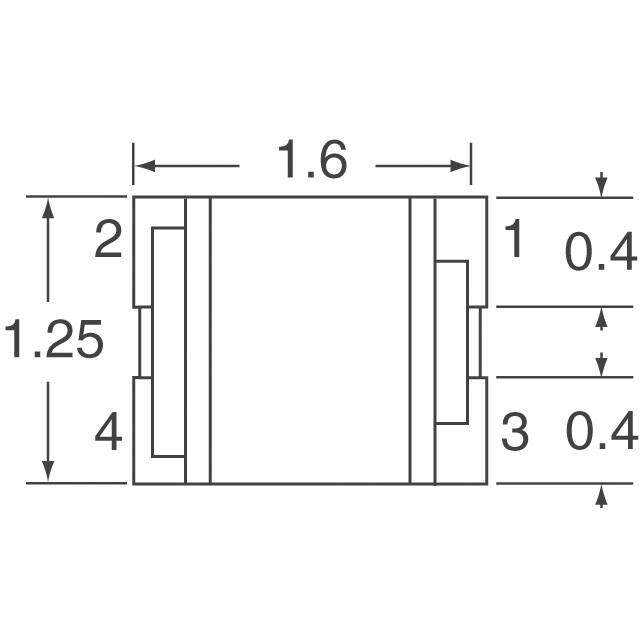

Size / Dimension 1.60mm Lx1.25mm W
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Color Green, Orange
Subcategory Visible LEDs
Packing Method BULK
Number of Functions 1
Terminal Pitch 1.3mm
Reach Compliance Code unknown
Base Part Number LNJ115W
Case Code (Metric) 1613
Case Code (Imperial) 0605
Configuration Independent
Voltage - Forward (Vf) (Typ) 2.03V Green 1.95V Orange
Optoelectronic Device Type DUAL COLOR LED
Current - Test 10mA Green 10mA Orange
Lens Style Rectangle with Flat Top
Lens Size 1.10mmx1.25mm
Luminous Intensity 21 mcd
Millicandela Rating 5mcd Green, 21mcd Orange
Illumination Color Green, Orange
Wavelength - Peak 565nm Green 615nm Orange
Forward Current-Max 0.02A
Forward Voltage-Max 2.6V
Reverse Voltage-Max 4V
Dominant Wavelength 615 nm
Dimensions
Height 550μm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
