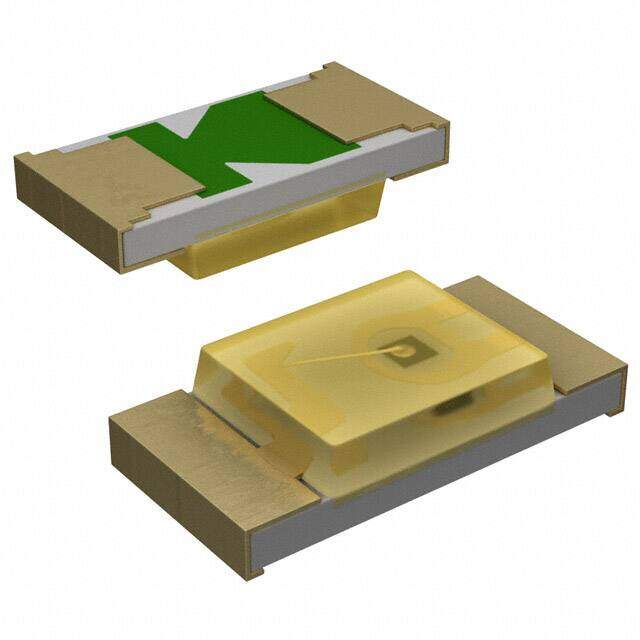

LNJ026X8BRA1 image
Favorite
LNJ026X8BRA1 image
Favorite
RoHS
/
Package 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED WHITE SMD
PDF
/
Inventory: 1141
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Height 350μm

Technical

Reverse Voltage-Max 5V
Forward Voltage-Max 3.7V
Forward Current-Max 0.005A
Luminous Intensity 80 mcd
Lens Size 1.10mmx0.80mm
Lens Style Rectangle with Flat Top
Current - Test 5mA
Optoelectronic Device Type SINGLE COLOR LED
Voltage - Forward (Vf) (Typ) 3.1V
Configuration Standard
Operating Temperature (Min) -30°C
Operating Temperature (Max) 85°C
Case Code (Imperial) 0603
Case Code (Metric) 1608
Base Part Number LNJ*26
Reach Compliance Code unknown
Terminal Pitch 1.6mm
Number of Functions 1
Packing Method BULK
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Color White
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Size / Dimension 1.60mm Lx0.80mm W
Published 2005
Packaging Tape & Reel (TR)

Physical

Shape RECTANGULAR
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Mount Surface Mount
