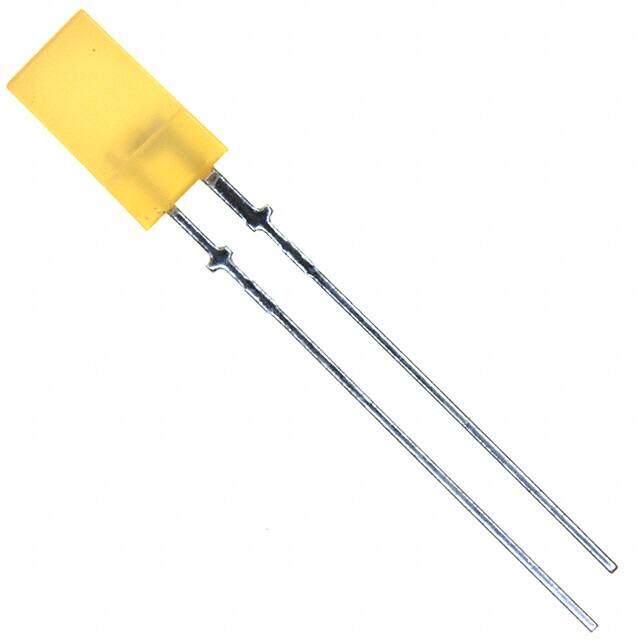

LN450YPH image
Favorite
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description LED AMBER SQUARE TYPE LED T/H
PDF
/
Inventory: 5590
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 5mm
Length 5mm
Height 9mm

Technical

Reverse Voltage-Max 4V
T-code T-1 3/4
Forward Voltage-Max 2.8V
Forward Current-Max 0.03A
Wavelength - Peak 590nm
Luminous Intensity 1.5 mcd
Lens Size 5.00mm
Lens Style Square with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 150 deg
Voltage - Forward (Vf) (Typ) 2.2V
Configuration Standard
Operating Temperature (Min) -25°C
Operating Temperature (Max) 85°C
Base Part Number LN*50
Reach Compliance Code unknown
Terminal Pitch 2.54mm
Number of Functions 1
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Color Amber
Terminal Finish Tin/Lead (Sn/Pb)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e0
Published 2001
Packaging Bulk

Physical

Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
