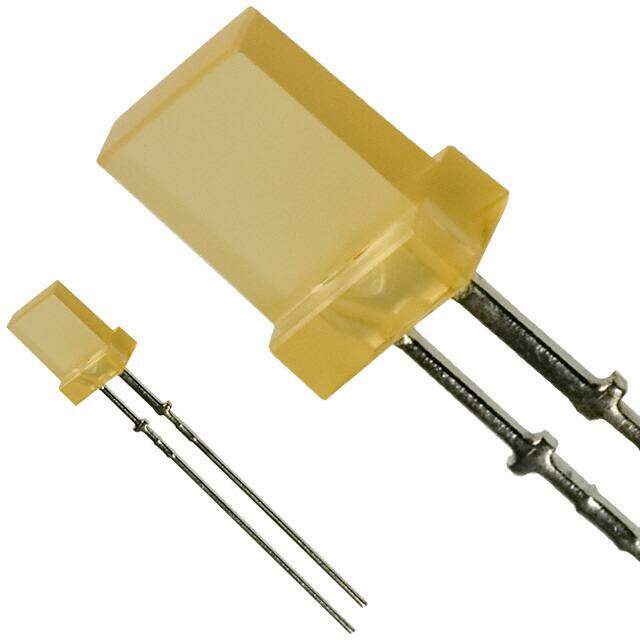

LN417YPH
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED AMBER SQUARE TYPE LED T/H
PDF
/
Inventory: 4877
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Shape RECTANGULAR
Technical
Packaging Bulk
Published 2001
JESD-609 Code e0
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Terminal Finish Tin/Lead (Sn/Pb)
Color Amber
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Number of Functions 1
Terminal Pitch 2.54mm
Reach Compliance Code unknown
Base Part Number LN*17
Operating Temperature (Max) 85°C
Operating Temperature (Min) -25°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.2V
Viewing Angle 130 deg
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Rectangle with Flat Top
Lens Size 5.30mmx1.80mm
Luminous Intensity 1.5 mcd
Wavelength - Peak 590nm
Forward Current-Max 0.03A
Forward Voltage-Max 2.1V
Reverse Voltage-Max 4V
Dimensions
Height 8mm
Width 5.3mm
Compliance
RoHS Status RoHS Compliant
