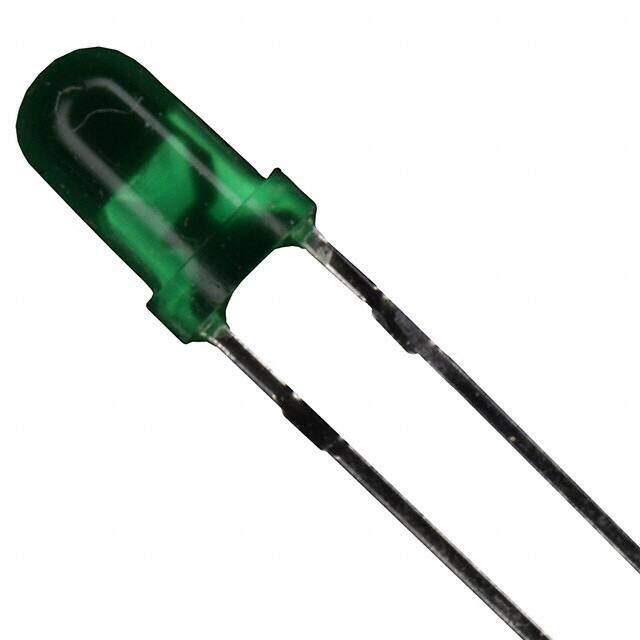

LN38GPX
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN 3MM ROUND T/H
PDF
/
Inventory: 9990
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Technical
Packaging Bulk
Published 2001
JESD-609 Code e0
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Terminal Finish Tin/Lead (Sn/Pb)
Color Green
Reverse Voltage-Max 4V
T-code T-1
Forward Voltage-Max 2.8V
Forward Current-Max 0.03A
Wavelength - Peak 565nm
Luminous Intensity 6 mcd
Lens Size 3mm T-1
Lens Style Round with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 70 deg
Voltage - Forward (Vf) (Typ) 2.2V
Configuration Standard
Operating Temperature (Min) -25°C
Operating Temperature (Max) 85°C
Base Part Number LN*8
Reach Compliance Code unknown
Terminal Pitch 2.54mm
Number of Functions 1
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 5.5mm
Diameter 3mm
