LN29RCPX
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description

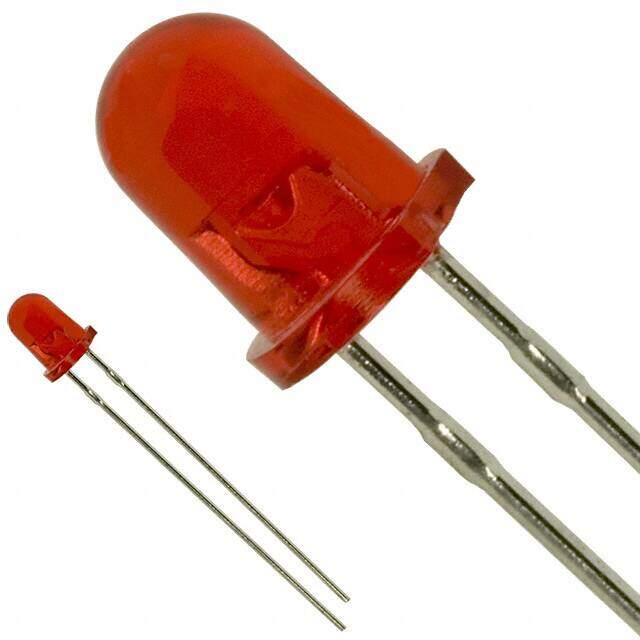

Panasonic LN29RCPX, Round Series Red LED, 700 nm 4, Round Lens Through Hole package
PDF
/
Inventory: 5678
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 6mm
Diameter 4mm
Technical
Dominant Wavelength 700 nm
Peak Wavelength 630 nm
T-code T-1
Number of LEDs 1
Forward Current-Max 0.03A
Millicandela Rating 3.5mcd
Luminous Intensity 3.5 mcd
Lens Size 4.00mm Dia
Lens Style Round with Domed Top
Current - Test 15mA
Optoelectronic Device Type SINGLE COLOR LED
Voltage - Forward (Vf) (Typ) 2.2V
Configuration Standard
Operating Temperature (Max) 85°C
Base Part Number LN*9
Reach Compliance Code unknown
Number of Functions 1
Color Red
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Published 2004
Packaging Bulk
Physical
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 14 Weeks
