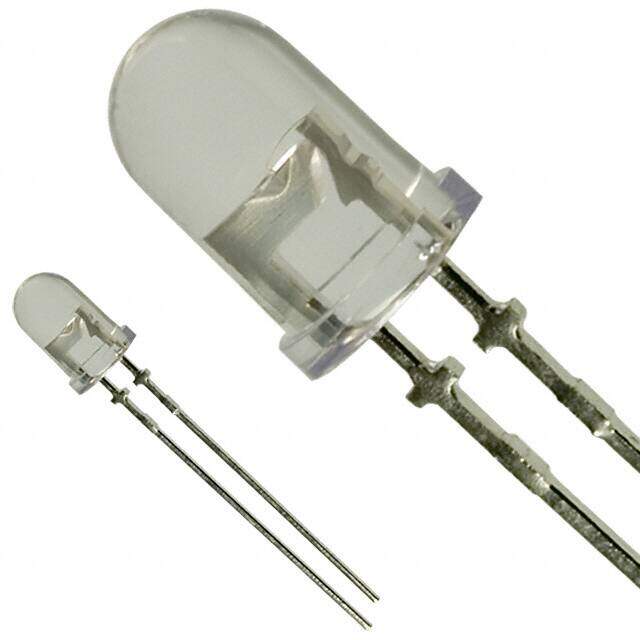

LN289CUQ image
Favorite
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description LED RED 5MM ROUND T/H
PDF
/
Inventory: 8208
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial

Technical

Packaging Bulk
Published 2008
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Terminal Finish Tin/Lead (Sn/Pb)
Color Red
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Number of Functions 1
Terminal Pitch 2.54mm
Reach Compliance Code unknown
Base Part Number LN*89
Operating Temperature (Max) 85°C
Operating Temperature (Min) -25°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 1.8V
Viewing Angle 40 deg
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 620 mcd
Wavelength - Peak 660nm
Forward Current-Max 0.05A
Forward Voltage-Max 2.4V
Reverse Voltage-Max 3V

Dimensions

Diameter 5mm
Height 8.85mm

Compliance

RoHS Status RoHS Compliant
Lead Free Contains Lead
