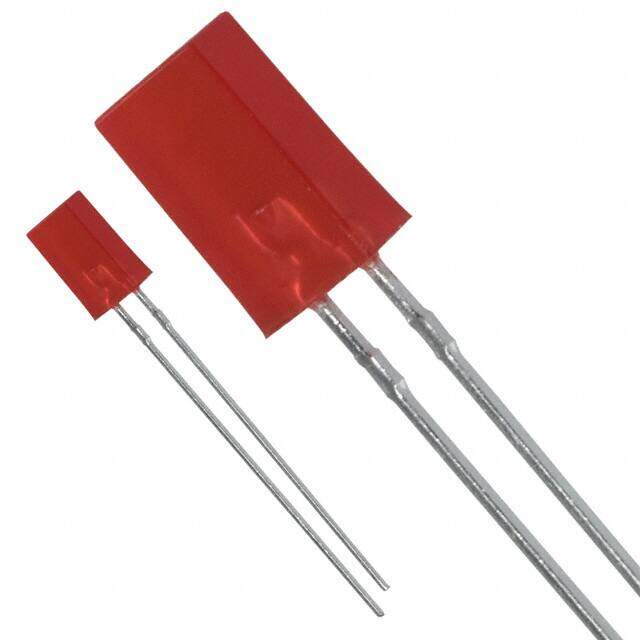

LN242RPX image
Favorite
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description Red 5x2mm Rectangular LED 700nm 20mA
PDF
/
Inventory: 5349
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 2mm
Length 5mm
Height 7.5mm

Technical

Number of LEDs 1
Reverse Voltage 4V
Wavelength - Peak 700nm
Lens Transparency Diffused
Millicandela Rating 0.4mcd
Luminous Intensity 400 μcd
Lens Size 5.00mmx2.00mm
Lens Style Rectangle with Flat Top
Current - Test 15mA
Optoelectronic Device Type SINGLE COLOR LED
Voltage - Forward (Vf) (Typ) 2.2V
Configuration Standard
Base Part Number LN*42
Number of Functions 1
Subcategory Visible LEDs
Color Red
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Published 2001
Packaging Bulk

Physical

Shape RECTANGULAR
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 14 Weeks
