LN222RPX
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description

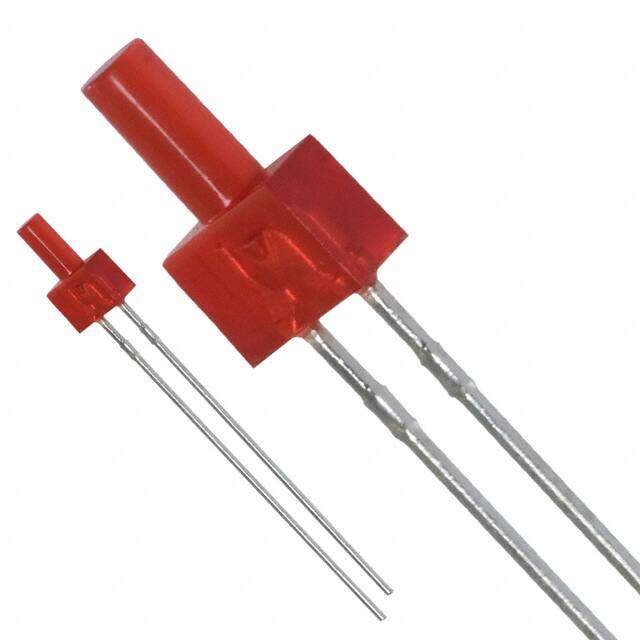

Panasonic LN222RPX, Round Series Red LED, 700 nm 2mm (T-3/4), Round Lens Through Hole package
PDF
/
Inventory: 8495
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 8mm
Diameter 2mm
Technical
Dominant Wavelength 700 nm
Reverse Voltage-Max 4V
T-code T-3/4
Number of LEDs 1
Lens Transparency Diffused
Millicandela Rating 0.6mcd
Luminous Intensity 600 μcd
Lens Size 2.00mm Dia
Lens Style Round with Flat Top
Current - Test 15mA
Optoelectronic Device Type SINGLE COLOR LED
Voltage - Forward (Vf) (Typ) 2.2V
Configuration Standard
Operating Temperature (Max) 85°C
Base Part Number LN*22
Reach Compliance Code unknown
Number of Functions 1
Subcategory Visible LEDs
Color Red
Terminal Finish Tin/Lead (Sn/Pb)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e0
Published 2001
Packaging Bulk
Physical
Shape CYLINDRICAL
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 14 Weeks
