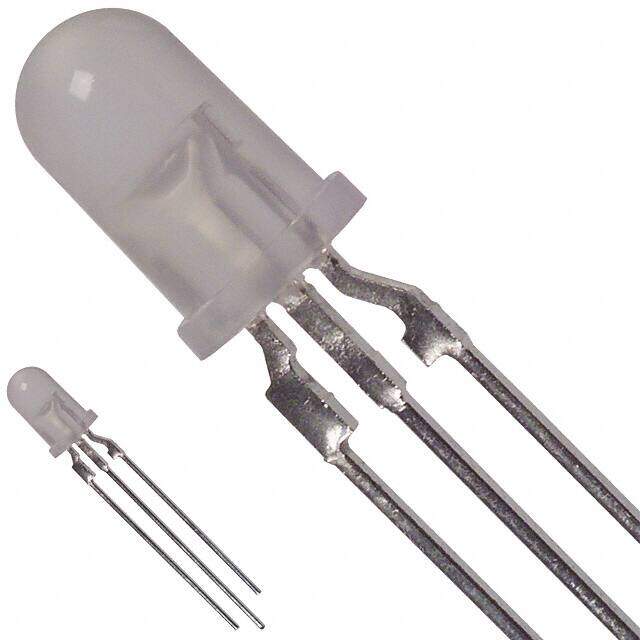

LN11WP38
RoHS
/
Package Radial - 3 Leads
Category Optoelectronics / LED Indication - Discrete
Description
LED GRN/ORANGE DUAL CLR DIFFUSED
PDF
/
Buying Options
Total Price: USD $0.57
Unit Price: USD $0.568996
≥1 USD $0.568996
≥10 USD $0.536792
≥100 USD $0.506401
≥500 USD $0.47774
≥1000 USD $0.4507
Inventory: 1131
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial - 3 Leads
Technical
Packaging Bulk
Published 2008
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Color Green, Orange
HTS Code 8541.40.20.00
Number of Functions 1
Terminal Pitch 2.54mm
Reach Compliance Code unknown
Base Part Number LN11
Operating Temperature (Max) 85°C
Operating Temperature (Min) -25°C
Configuration Common Cathode
Voltage - Forward (Vf) (Typ) 2.2V Green 2.1V Orange
Optoelectronic Device Type DUAL COLOR LED
Current - Test 20mA Green 20mA Orange
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 15 mcd
Millicandela Rating 15mcd Green, 15mcd Orange
Wavelength - Peak 565nm Green 630nm Orange
Forward Current-Max 0.03A
Dimensions
Diameter 5mm
Height 7.65mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
