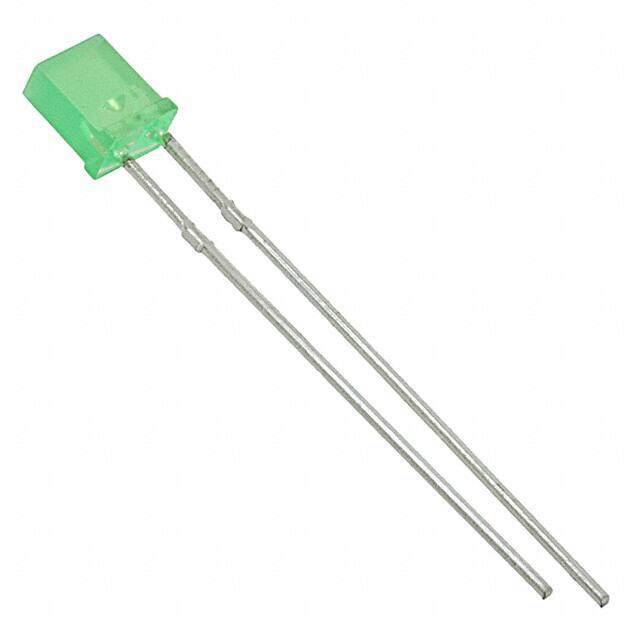

MT212T-G-A
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN DIFF RECT 2MMX4MM T/H
PDF
/
Inventory: 5956
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 5.2mm
Technical
Wavelength - Dominant 572nm
Forward Current-Max 0.03A
Wavelength - Peak 576nm
Lens Transparency Diffused
Luminous Intensity 10 mcd
Lens Size 4.00mmx2.00mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2.1V
Configuration Standard
Operating Temperature (Min) -25°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.54mm
Number of Functions 1
HTS Code 8541.40.20.00
Color Green
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Published 2007
Packaging Bulk
Physical
Shape RECTANGULAR
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 8 Weeks
