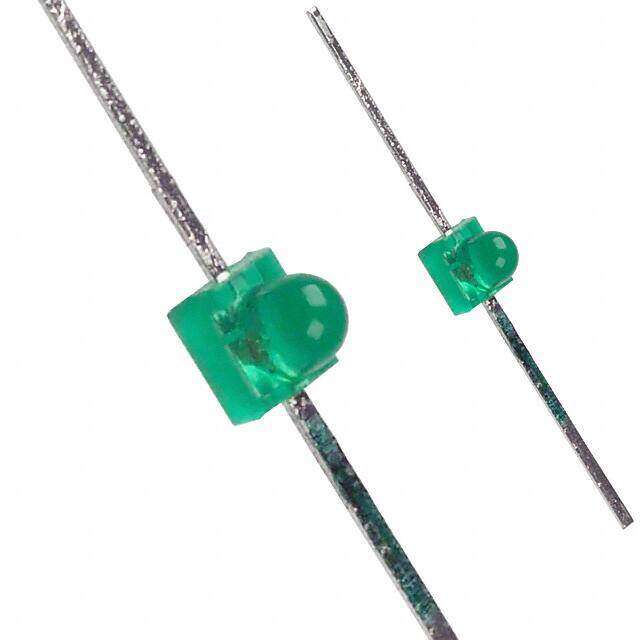

SSL-LXA228GD
RoHS
RoHS compliant
RoHS compliantPackage Axial, Flat Leads
Category Optoelectronics / LED Indication - Discrete
Description
Standard LEDs - SMD 2 x 2.5MM GREEN DIFF
PDF
/
Inventory: 4237
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Axial
Package / Case Axial, Flat Leads
Number of Pins 2
Technical
Packaging Bulk
Published 2001
Size / Dimension 2.50mm Lx2.00mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Green
Power Rating 100mW
Number of Functions 1
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.1V
Viewing Angle 25°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Round with Domed Top
Lens Size 1.90mm Dia
Luminous Intensity 12 mcd
Millicandela Rating 12mcd
Lens Transparency Diffused
Wavelength - Peak 565nm
Number of LEDs 1
T-code T-3/4
Dimensions
Diameter 1.9mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
