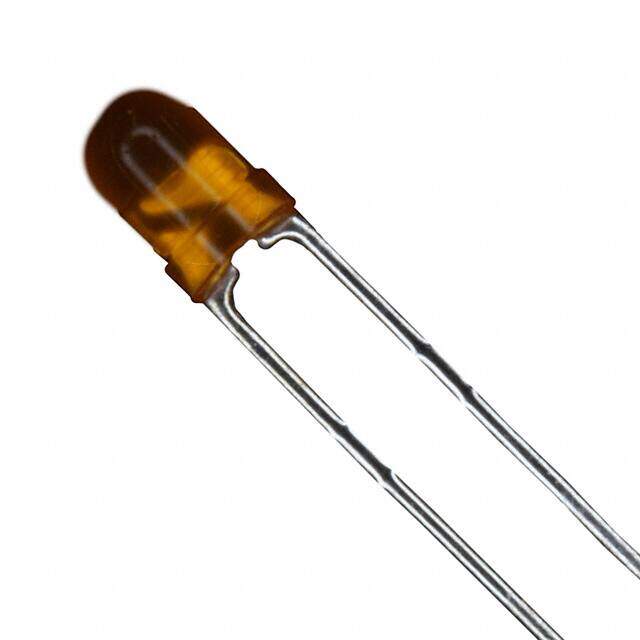

SSL-LX3044OD
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED ORANGE DIFF 3MM ROUND T/H
PDF
/
Inventory: 2146
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 4.6mm
Technical
T-code T-1
Number of LEDs 1
Wavelength - Peak 630nm
Lens Transparency Diffused
Luminous Intensity 30 mcd
Lens Size 3mm T-1
Lens Style Round with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 60°
Voltage - Forward (Vf) (Typ) 2V
Configuration Standard
Number of Functions 1
Color Orange
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Tin (Sn)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2001
Packaging Bulk
Physical
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
