SSL-LX3034GD
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description

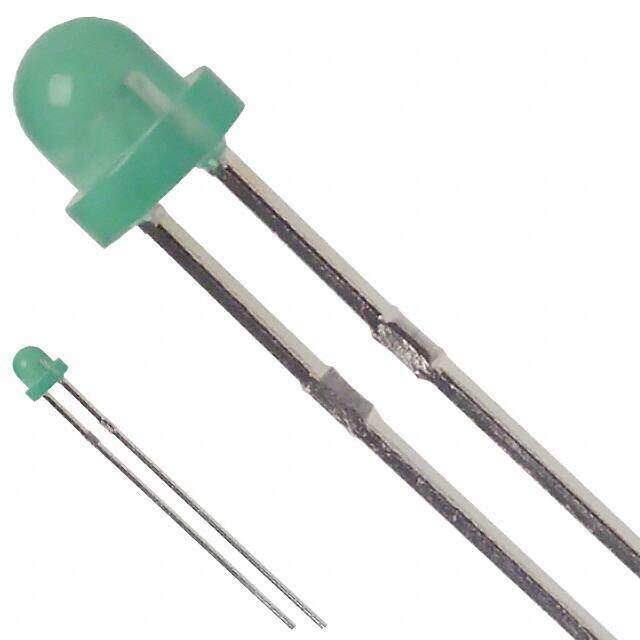

LED GREEN DIFFUSED T-1 T/H
PDF
/
Buying Options
Total Price: USD $0.35
Unit Price: USD $0.352
≥1 USD $0.352
≥10 USD $0.23144
≥100 USD $0.154176
≥500 USD $0.08888
≥1000 USD $0.075548
≥3000 USD $0.068886
Inventory: 5121
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 38.1mm
Length 6.35mm
Height 3.8mm
Diameter 3mm
Technical
Reverse Voltage-Max 5V
T-code T-1
Wavelength - Peak 565nm
Lens Transparency Diffused
Millicandela Rating 10mcd
Luminous Intensity 10 mcd
Lens Size 3mm T-1
Lens Style Round with Domed Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 60°
Voltage - Forward (Vf) (Typ) 2.2V
Configuration Standard
Number of Functions 1
Subcategory Visible LEDs
Color Green
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Tin (Sn)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2007
Packaging Bulk
Physical
Weight 4.535924g
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
