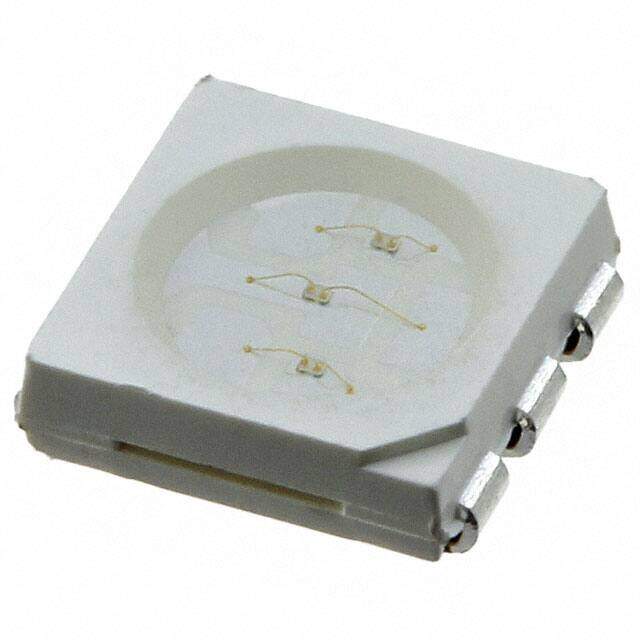

SML-LX5050SUGC-TR
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, J-Lead
Category Optoelectronics / LED Indication - Discrete
Description
Standard LEDs - SMD SMT LED 574nm Green
PDF
/
Buying Options
Total Price: USD $0.93
Unit Price: USD $0.926577
≥1 USD $0.926577
≥10 USD $0.874128
≥100 USD $0.824649
≥500 USD $0.777966
≥1000 USD $0.733937
Inventory: 9327
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, J-Lead
Technical
Packaging Tape & Reel (TR)
Published 2014
Size / Dimension 5.00mm Lx5.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Green
HTS Code 8541.40.20.00
Configuration Standard
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 30mA
Current - Test 20mA
Lens Style Round with Flat Top
Lens Size 4.40mm Dia
Luminous Intensity 80 mcd
Lens Transparency Clear
Wavelength - Peak 574nm
Lens Color Colorless
Dimensions
Height 1.8mm
Compliance
RoHS Status ROHS3 Compliant
