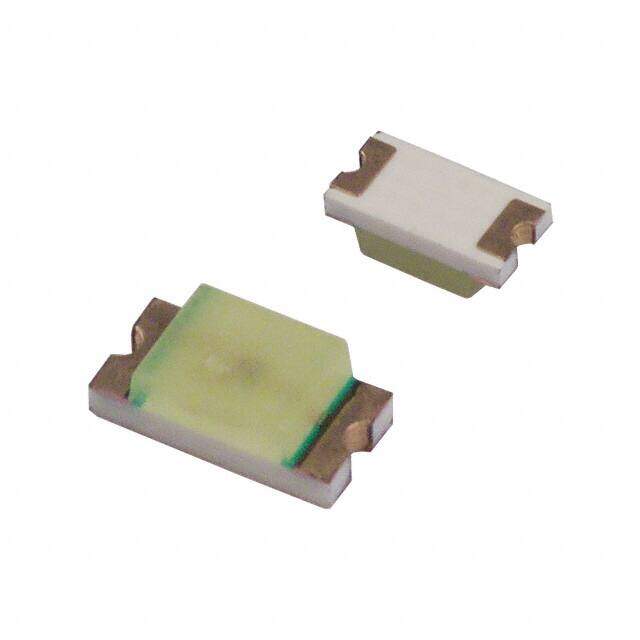

LTW-150TK
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED WHITE CHIP SMD
PDF
/
Buying Options
Total Price: USD $0.38
Unit Price: USD $0.3784
≥1 USD $0.3784
≥10 USD $0.23056
≥100 USD $0.132616
≥500 USD $0.103805
Inventory: 292669
Minimum: 1
-
+
Technical Details
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Dimensions
Height 1.1mm
Technical
Wavelength 468 nm
Reverse Voltage 5V
Lens Color Yellow
Millicandela Rating 260mcd
Luminous Intensity 260 mcd
Lens Size 2.06mmx1.60mm
Lens Style Rectangle with Flat Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 130°
Voltage - Forward (Vf) (Typ) 3.2V
Power Dissipation 70mW
Configuration Standard
Number of Elements 1
Case Code (Imperial) 1206
Case Code (Metric) 3216
Depth 1.6mm
Number of Functions 1
Max Power Dissipation 70mW
Packing Method TAPE AND REEL 7"
Power Rating 70mW
Additional Feature IC COMPATIBLE, SUPPORTS INFRARED
Color White
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Size / Dimension 3.20mm Lx1.60mm W
Published 2004
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Number of Pins 2
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
