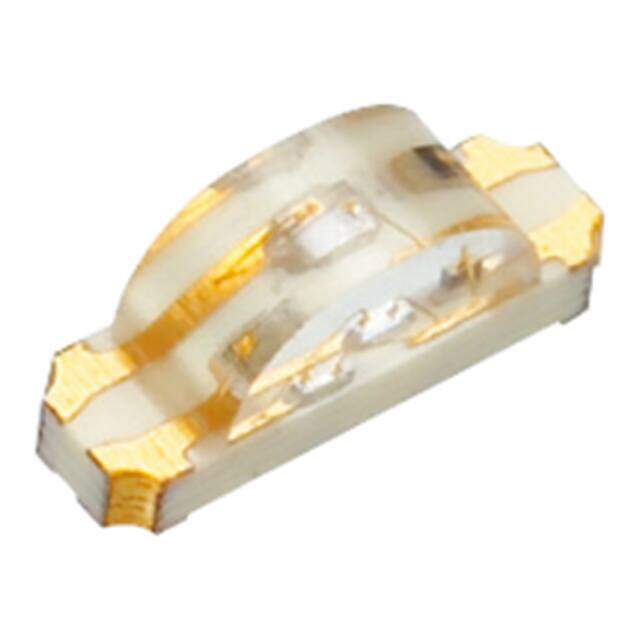

LTST-S310F2KT
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD
Category Optoelectronics / LED Indication - Discrete
Description
LED RGB CLEAR SMD R/A
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.4928
≥1 USD $0.4928
≥10 USD $0.3256
≥100 USD $0.215336
≥500 USD $0.166276
Inventory: 63484
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Package / Case 4-SMD
Number of Pins 4
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2007
Size / Dimension 3.20mm Lx1.50mm W
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Terminal Finish Tin (Sn)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Red, Green, Blue (RGB)
Additional Feature IC COMPATIBLE, SUPPORTS INFRARED
Packing Method TAPE AND REEL 7"
Number of Functions 1
Depth 1mm
Number of Elements 3
Configuration Common Anode
Voltage - Forward (Vf) (Typ) 2V Red 3.5V Green 3.5V Blue
Viewing Angle 130°
Optoelectronic Device Type TRIPLE COLOR LED
Forward Current 20mA
Current - Test 20mA Red 20mA Green 20mA Blue
Lens Style Rectangle with Domed Top
Lens Size 2.00mmx1.00mm
Luminous Intensity 180 mcd
Millicandela Rating 135mcd Red, 210mcd Green, 78.5mcd Blue
Lens Transparency Clear
Wavelength - Peak 632nm Red 520nm Green 468nm Blue
Lens Color Colorless
Reverse Voltage 5V
Wavelength - Dominant 624nm Red 525nm Green 470nm Blue
Dimensions
Height 1mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
