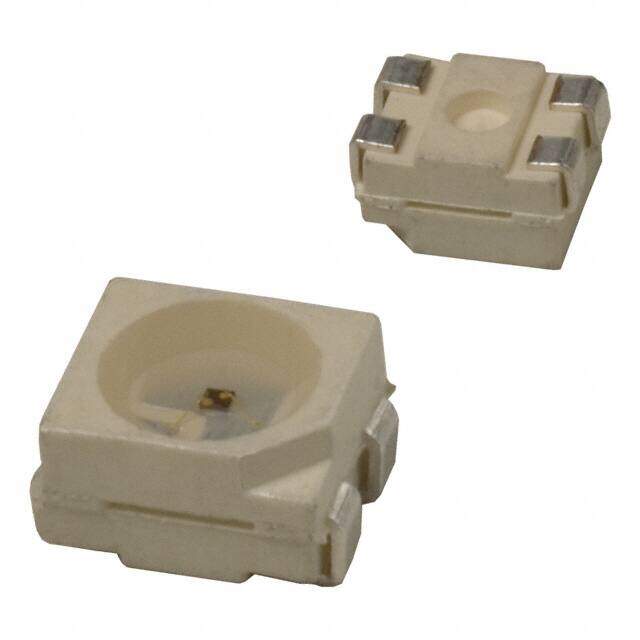

LTST-E670MBL30
RoHS
/
Package 4-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
LED BLUE CLEAR 4PLCC SMD
PDF
/
Inventory: 9782
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 1.9mm
Technical
Wavelength - Dominant 470nm
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 468nm
Lens Transparency Clear
Luminous Intensity 295 mcd
Lens Style Round with Flat Top
Current - Test 30mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 4V
Configuration Standard
Operating Temperature (Max) 100°C
Reach Compliance Code unknown
Terminal Pitch 3mm
Number of Functions 1
Packing Method TAPE AND REEL 7"
Additional Feature IC COMPATIBLE, SUPPORTS INFRARED
Color Blue
Terminal Finish Tin (Sn)
Number of Terminations 4
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 3.20mm Lx2.80mm W
Published 2006
Packaging Tape & Reel (TR)
Physical
Number of Pins 4
Package / Case 4-PLCC
Mounting Type Surface Mount
Mount Surface Mount
