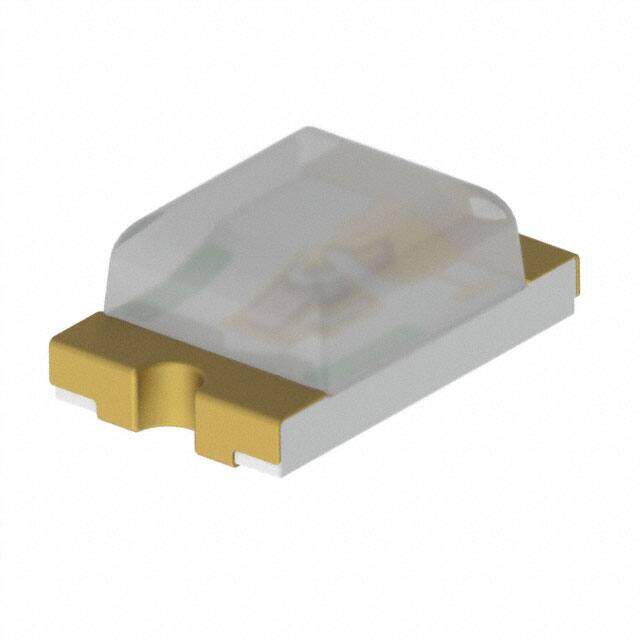

LTST-C171TGKT
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN CLEAR CHIP SMD
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.5016
≥1 USD $0.5016
≥10 USD $0.30976
≥100 USD $0.178024
≥500 USD $0.139348
Inventory: 11213
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Number of Pins 2
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2008
Size / Dimension 2.00mm Lx1.25mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Number of Terminations 2
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Green
Additional Feature IC COMPATIBLE
Packing Method TAPE AND REEL 7"
Number of Functions 1
Depth 1.25mm
Case Code (Metric) 2012
Case Code (Imperial) 0805
Number of Elements 1
Configuration Independent
Power Dissipation 76mW
Voltage - Forward (Vf) (Typ) 3.2V
Viewing Angle 130°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Rectangle with Flat Top
Lens Size 1.40mmx1.25mm
Luminous Intensity 450 mcd
Millicandela Rating 260.5mcd
Lens Transparency Clear
Wavelength - Peak 530nm
Lens Color Colorless
Reverse Voltage 5V
Wavelength - Dominant 525nm
Dimensions
Height 800μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
