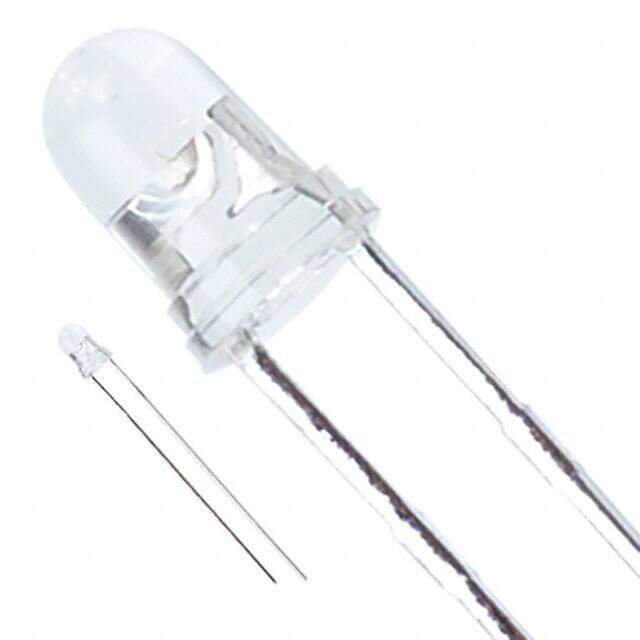

LTL1CHTBK2 image
Favorite
LTL1CHTBK2 image
Favorite

LTL1CHTBK2

Lite-On Inc.
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description LED BLUE CLEAR T/H
PDF
/
Inventory: 4638
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial

Technical

Packaging Bulk
Published 2003
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Terminal Finish Bright Tin (Sn)
Color Blue
Additional Feature IC COMPATIBLE
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Packing Method BAG/CARTON
Number of Functions 1
Terminal Pitch 2.54mm
Operating Temperature (Max) 80°C
Operating Temperature (Min) -25°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 4V
Viewing Angle 30°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Round with Domed Top
Lens Size 3.10mm Dia
Luminous Intensity 85 mcd
Lens Transparency Clear
Wavelength - Peak 468nm
Lens Color Colorless
Forward Current-Max 0.03A
Forward Voltage-Max 4.5V
Wavelength - Dominant 470nm
T-code T-1
Reverse Voltage-Max 5V

Dimensions

Diameter 3.1mm
Height 5.2mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
