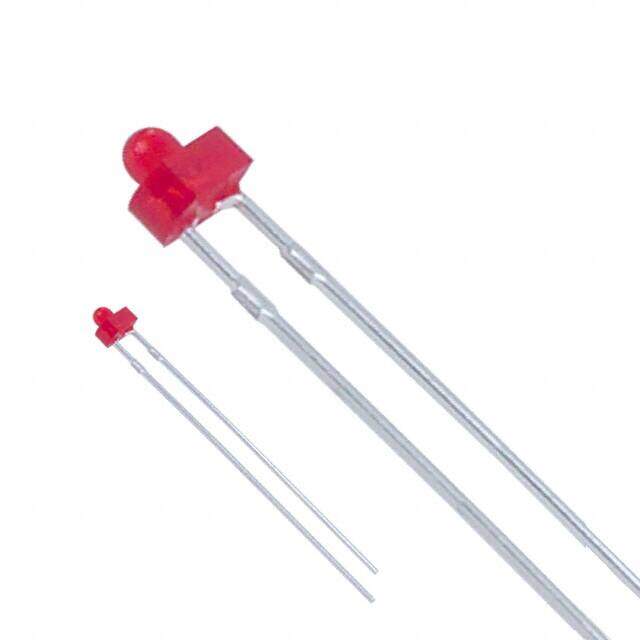

LTL-709E
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED RED DIFFUSED T/H
PDF
/
Buying Options
Total Price: USD $0.36
Unit Price: USD $0.3608
≥1 USD $0.3608
≥10 USD $0.22
≥100 USD $0.126368
≥500 USD $0.098868
≥1000 USD $0.082394
≥3000 USD $0.076903
Inventory: 750
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 3.3mm
Height 3.6mm
Diameter 1.8mm
Technical
T-code T-3/4
Wavelength - Dominant 623nm
Reverse Voltage 5V
Wavelength - Peak 635nm
Lens Transparency Diffused
Luminous Intensity 12.6 mcd
Lens Size 1.80mm Dia
Lens Style Round with Domed Top
Current - Test 10mA
Forward Current 30mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 38°
Voltage - Forward (Vf) (Typ) 2V
Power Dissipation 100mW
Configuration Standard
Number of Elements 1
Depth 2.4mm
Number of Functions 1
Additional Feature IC COMPATIBLE
Color Red
Min Operating Temperature -55°C
Max Operating Temperature 100°C
Terminal Finish Tin (Sn)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2000
Packaging Bulk
Physical
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
