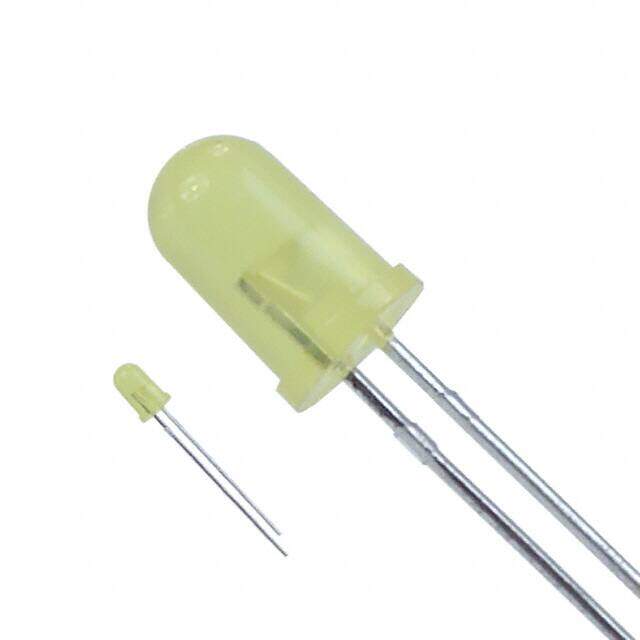

LTL-4253 image
Favorite
LTL-4253 image
Favorite

LTL-4253

Lite-On Inc.
RoHS
RoHS RoHS compliant
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description LED YELLOW DIFFUSED T-1 3/4 T/H
PDF
/
Buying Options
Total Price: USD $0.32
Unit Price: USD $0.3168
≥1 USD $0.3168
≥10 USD $0.1716
≥100 USD $0.079728
≥500 USD $0.073586
≥1000 USD $0.057649
≥3000 USD $0.056426
Inventory: 1400
Minimum: 1
-
+

Technical Details

Technical

Number of Terminations 2
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 100°C
Min Operating Temperature -55°C
Color Yellow
Subcategory Visible LEDs
Power Rating 60mW
Max Power Dissipation 60mW
Number of Functions 1
Depth 5.6mm
Number of Elements 1
Configuration Standard
Power Dissipation 60mW
Voltage - Forward (Vf) (Typ) 2.1V
Viewing Angle 36°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Current - Test 10mA
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 19 mcd
Lens Transparency Diffused
Wavelength - Peak 585nm
Reverse Voltage 5V
Wavelength - Dominant 588nm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e0
Published 2000
Packaging Bulk

Dimensions

Diameter 5mm
Height 8.6mm
Length 5.6mm
Width 5.6mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free

Physical

Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 12 Weeks
