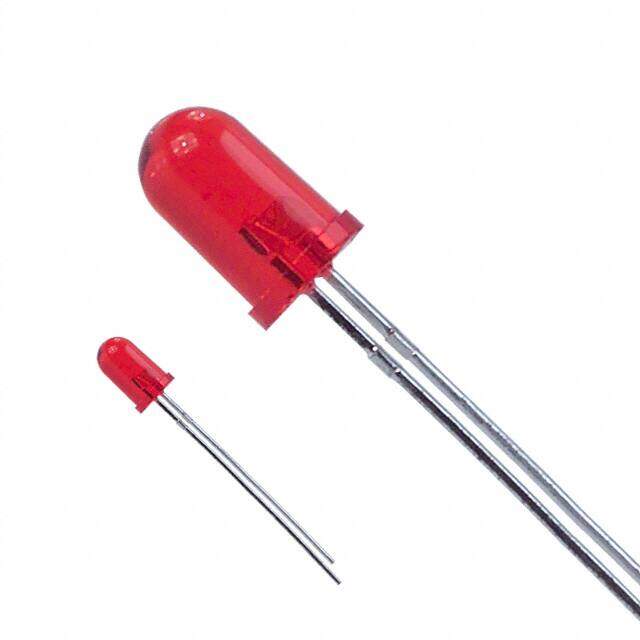

LTL-4224
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR T-1 3/4 T/H
PDF
/
Buying Options
Total Price: USD $0.32
Unit Price: USD $0.3168
≥1 USD $0.3168
≥10 USD $0.1716
≥100 USD $0.079728
≥500 USD $0.073586
≥1000 USD $0.057649
≥3000 USD $0.056426
Inventory: 8400
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 5.6mm
Length 5.6mm
Height 8.6mm
Diameter 5mm
Technical
Wavelength - Dominant 623nm
Reverse Voltage 5V
Wavelength - Peak 635nm
Lens Transparency Clear
Luminous Intensity 90 mcd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Current - Test 10mA
Forward Current 30mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 16°
Voltage - Forward (Vf) (Typ) 2V
Power Dissipation 100mW
Configuration Standard
Number of Elements 1
Depth 5.6mm
Number of Functions 1
Max Power Dissipation 100mW
Power Rating 100mW
Color Red
Min Operating Temperature -55°C
Max Operating Temperature 100°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2000
Packaging Bulk
Physical
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
