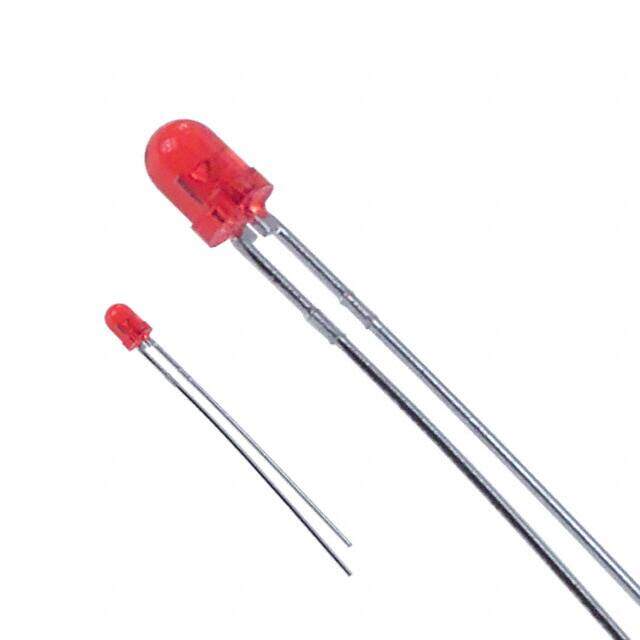

LTL-4222N
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR T-1 T/H
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.275691
≥1 USD $0.275691
≥10 USD $0.260082
≥100 USD $0.245362
≥500 USD $0.231474
≥1000 USD $0.218375
Inventory: 1121
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 3.2mm
Height 5.85mm
Diameter 3mm
Technical
T-code T-1
Wavelength - Dominant 623nm
Reverse Voltage 5V
Wavelength - Peak 635nm
Lens Transparency Clear
Luminous Intensity 29 mcd
Lens Size 3mm T-1
Lens Style Round with Domed Top
Current - Test 10mA
Forward Current 30mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 45°
Voltage - Forward (Vf) (Typ) 2V
Power Dissipation 100mW
Configuration Standard
Number of Elements 1
Depth 3.2mm
Number of Functions 1
Subcategory Visible LEDs
Color Red
Min Operating Temperature -55°C
Max Operating Temperature 100°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2000
Packaging Bulk
Physical
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
