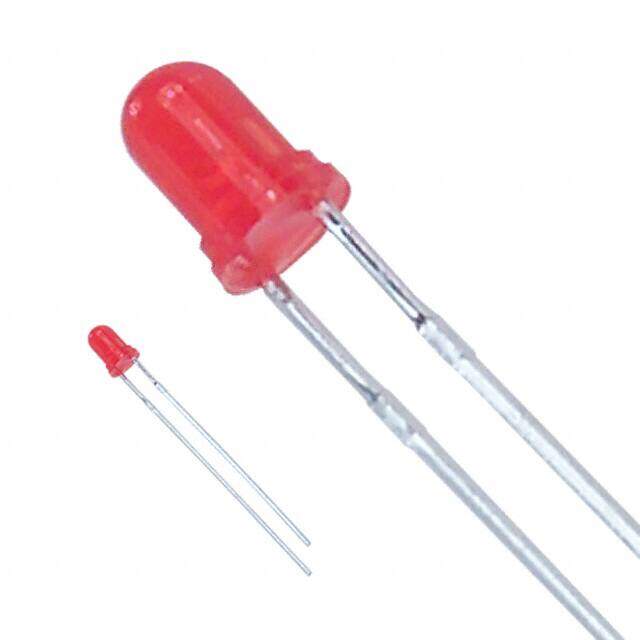

LTL-1CHE image
Favorite
LTL-1CHE image
Favorite

LTL-1CHE

Lite-On Inc.
RoHS
RoHS RoHS compliant
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description LED RED DIFFUSED T/H
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.2992
≥1 USD $0.2992
≥10 USD $0.16456
≥100 USD $0.076296
≥500 USD $0.055141
≥1000 USD $0.04693
≥3000 USD $0.04224
Inventory: 1450
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Length 3.8mm
Height 5.2mm
Diameter 3.1mm

Technical

T-code T-1
Wavelength - Dominant 623nm
Reverse Voltage 5V
Wavelength - Peak 635nm
Lens Transparency Diffused
Luminous Intensity 12.6 mcd
Lens Size 3.10mm Dia
Lens Style Round with Domed Top
Current - Test 20mA
Forward Current 30mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 60°
Voltage - Forward (Vf) (Typ) 2V
Power Dissipation 100mW
Configuration Standard
Number of Elements 1
Depth 3.8mm
Number of Functions 1
Subcategory Visible LEDs
Additional Feature IC COMPATIBLE
Color Red
Min Operating Temperature -55°C
Max Operating Temperature 100°C
Terminal Finish Matte Tin (Sn)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2003
Packaging Bulk

Physical

Manufacturer Package Identifier LTL-1CHE
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 12 Weeks
