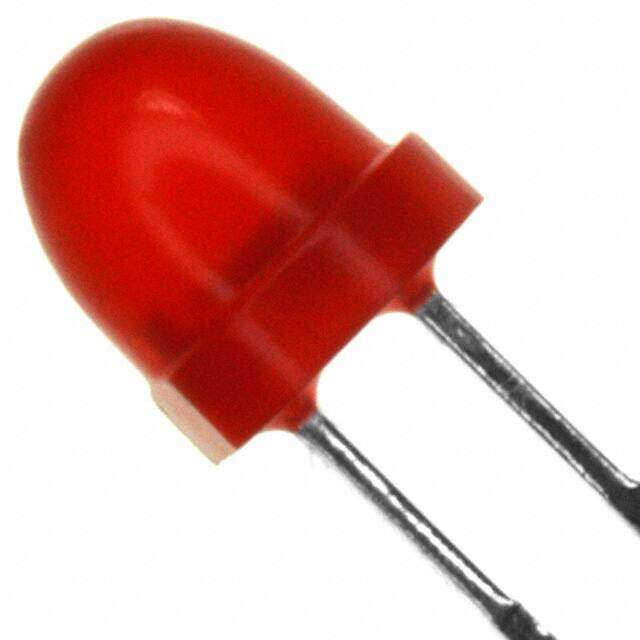

WP63SRD image
Favorite
WP63SRD image
Favorite

WP63SRD

Kingbright
RoHS
RoHS RoHS compliant
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description LED RED DIFFUSED T-1 3/4 T/H
PDF
/
Buying Options
Total Price: USD $0.58
Unit Price: USD $0.583504
≥1 USD $0.583504
≥10 USD $0.550474
≥100 USD $0.519312
≥500 USD $0.489921
≥1000 USD $0.462187
Inventory: 1148
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial

Technical

Packaging Bulk
Published 2007
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Red
Additional Feature HIGH RELIABILITY
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Number of Functions 1
Terminal Pitch 2.54mm
Configuration Standard
Voltage - Forward (Vf) (Typ) 1.85V
Viewing Angle 60°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 300 mcd
Millicandela Rating 100mcd
Lens Transparency Diffused
Wavelength - Peak 655nm
Forward Voltage-Max 2.5V
Wavelength - Dominant 640nm
Reverse Voltage-Max 5V

Dimensions

Height 6mm

Compliance

RoHS Status ROHS3 Compliant
