WP59SURKSGW
RoHS
RoHS compliant
RoHS compliantPackage Radial - 3 Leads
Category Optoelectronics / LED Indication - Discrete
Description

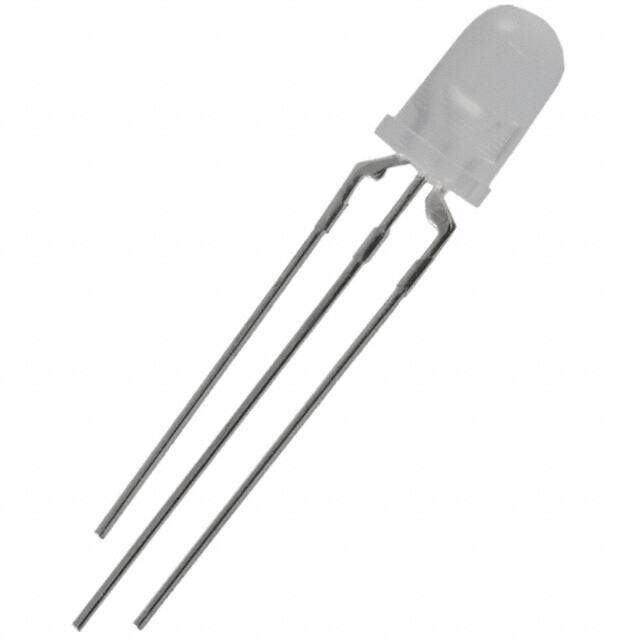

LED GRN/RED DIFFUSED T-1 3/4 T/H
PDF
/
Buying Options
Total Price: USD $0.53
Unit Price: USD $0.528
≥1 USD $0.528
≥10 USD $0.32736
≥100 USD $0.188056
≥500 USD $0.134922
≥1000 USD $0.122654
≥3000 USD $0.114479
Inventory: 1169
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial - 3 Leads
Technical
Packaging Bulk
Published 2011
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Green, Red
Additional Feature HIGH RELIABILITY
HTS Code 8541.40.20.00
Packing Method BOX/BAG
Number of Functions 1
Terminal Pitch 2.54mm
Configuration Common Cathode
Voltage - Forward (Vf) (Typ) 2.2V Green 1.95V Red
Viewing Angle 60°
Optoelectronic Device Type DUAL COLOR LED
Current - Test 20mA Green 20mA Red
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 1.2 cd
Millicandela Rating 60mcd Green, 1200mcd Red
Illumination Color Green, Red
Lens Transparency Diffused
Wavelength - Peak 565nm Green 650nm Red
Lens Color White
Forward Current-Max 0.03A
Wavelength - Dominant 568nm Green 630nm Red
Dimensions
Height 8.6mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
