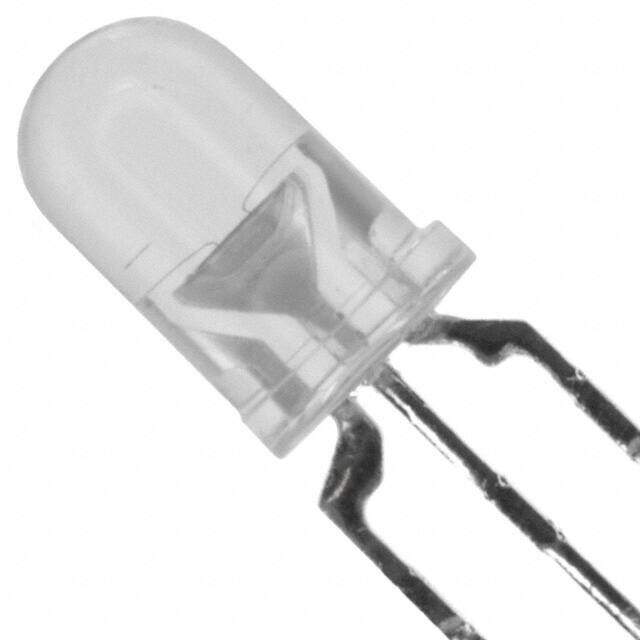

WP59EGC
RoHS
RoHS compliant
RoHS compliantPackage Radial - 3 Leads
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN/RED CLEAR T-1 3/4 T/H
PDF
/
Buying Options
Total Price: USD $0.53
Unit Price: USD $0.528
≥1 USD $0.528
≥10 USD $0.32384
≥100 USD $0.186032
≥500 USD $0.133452
≥1000 USD $0.121326
≥3000 USD $0.11323
Inventory: 1146
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 11.35mm
Height 8.6mm
Technical
Wavelength - Dominant 568nm Green 617nm Red
Lens Color Colorless
Wavelength - Peak 565nm Green 627nm Red
Lens Transparency Clear
Illumination Color Green, Red
Millicandela Rating 120mcd Green, 100mcd Red
Luminous Intensity 150 mcd
Forward Voltage 2V
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Current - Test 20mA Green 20mA Red
Forward Current 20mA
Viewing Angle 24°
Voltage - Forward (Vf) (Typ) 2.2V Green 2V Red
Current 25mA
Voltage 5V
Configuration Common Cathode
Color Green, Red
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2011
Packaging Bulk
Physical
Supplier Device Package T-1 3/4
Package / Case Radial - 3 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
