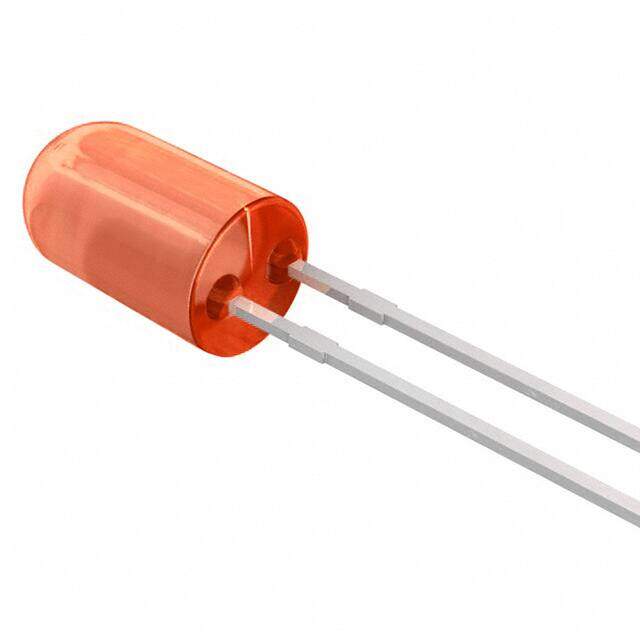

WP1503SRD image
Favorite
WP1503SRD image
Favorite

WP1503SRD

Kingbright
RoHS
RoHS RoHS compliant
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description Standard LEDs - Through Hole Red 640nm Diffused 700mcd
PDF
/
Inventory: 2062
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial

Technical

Packaging Bulk
Published 2007
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Red
HTS Code 8541.40.20.00
Number of Functions 1
Terminal Pitch 2.54mm
Configuration Standard
Voltage - Forward (Vf) (Typ) 1.85V
Viewing Angle 60°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 1 cd
Millicandela Rating 260mcd
Lens Transparency Diffused
Wavelength - Peak 655nm
Wavelength - Dominant 640nm

Dimensions

Height 8.6mm

Compliance

RoHS Status ROHS3 Compliant
