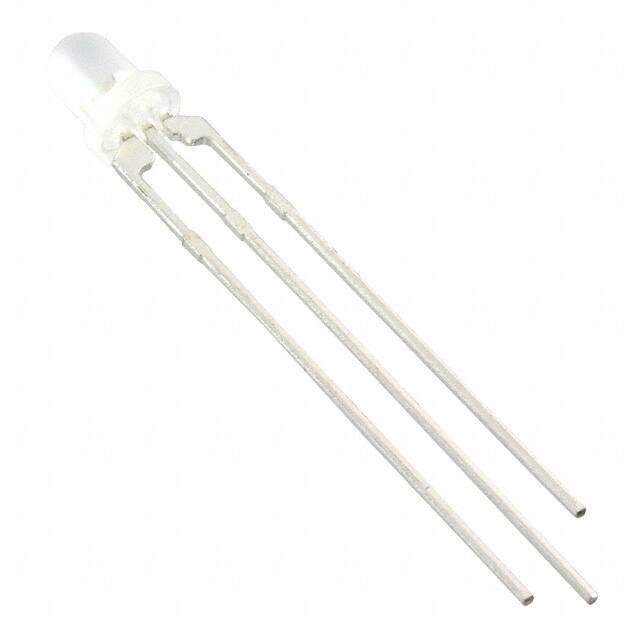

WP115WGYW
RoHS
RoHS compliant
RoHS compliantPackage Radial - 3 Leads
Category Optoelectronics / LED Indication - Discrete
Description
Standard LEDs - Through Hole Grn Yellow 568 588nm Diffused 35 20mcd
PDF
/
Buying Options
Total Price: USD $0.25
Unit Price: USD $0.2464
≥1 USD $0.2464
≥10 USD $0.15224
≥100 USD $0.087648
≥500 USD $0.068605
≥1000 USD $0.0671
Inventory: 13744
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial - 3 Leads
Technical
Packaging Bulk
Published 2012
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Green, Yellow
Additional Feature HIGH RELIABILITY
HTS Code 8541.40.20.00
Packing Method BOX/BAG
Number of Functions 1
Terminal Pitch 2.54mm
Configuration Common Cathode
Voltage - Forward (Vf) (Typ) 2.2V Green 2.1V Yellow
Viewing Angle 60°
Optoelectronic Device Type DUAL COLOR LED
Forward Current 20mA
Current - Test 20mA Green 20mA Yellow
Lens Style Round with Domed Top
Lens Size 3mm T-1
Luminous Intensity 20 mcd
Millicandela Rating 40mcd Green, 20mcd Yellow
Illumination Color Green, Yellow
Lens Transparency Diffused
Wavelength - Peak 565nm Green 590nm Yellow
Lens Color White
Wavelength - Dominant 568nm Green 588nm Yellow
T-code T-1
Dimensions
Height 5mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
