L53HD
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description

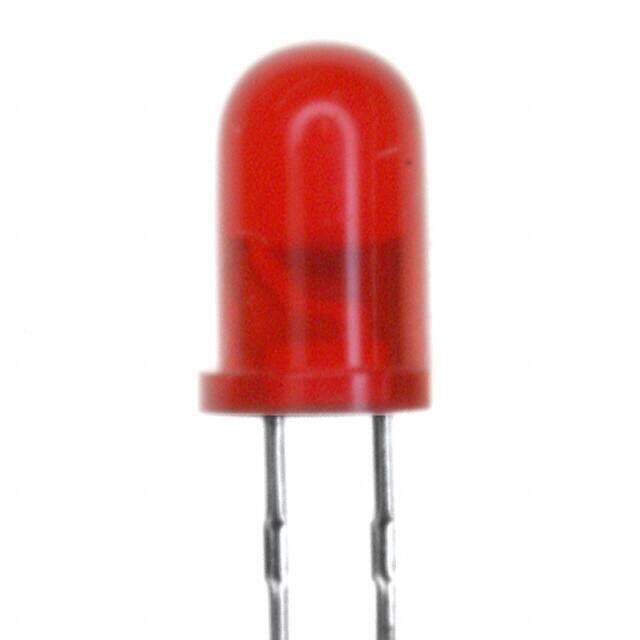

L-53HD, Round Series Red LED, 660 nm 5mm(T-1 3/4), Round Lens Through Hole package
PDF
/
Inventory: 5213
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 8.60mm
Technical
Wavelength - Dominant 660nm
Overall Height 8.6mm
Forward Voltage-Max 2.8V
Forward Current-Max 0.025A
Wavelength - Peak 700nm
Lens Transparency Diffused
Millicandela Rating 5mcd
Luminous Intensity 5.0 mcd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Current - Test 10mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 60°
Voltage - Forward (Vf) (Typ) 2.25V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Reach Compliance Code unknown
Terminal Pitch 2.54mm
Number of Functions 1
Subcategory Visible LEDs
Additional Feature HIGH RELIABILITY
Color Red
Terminal Finish NOT SPECIFIED
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2002
Packaging Bulk
Physical
Surface Mount NO
Package / Case Radial
Mounting Type Through Hole
Supply Chain
Factory Lead Time 12 Weeks
