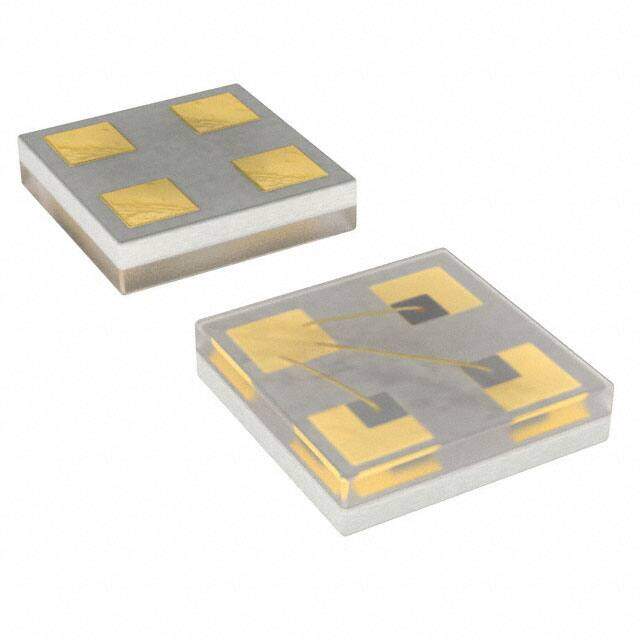

APGF1011SEEPBVGC-TT
RoHS
RoHS compliant
RoHS compliantPackage 0404 (1010 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED RGB CLEAR 4SMD
PDF
/
Buying Options
Total Price: USD $1.09
Unit Price: USD $1.085966
≥1 USD $1.085966
≥10 USD $1.024493
≥100 USD $0.966502
≥500 USD $0.911798
≥1000 USD $0.860179
Inventory: 1170
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0404 (1010 Metric)
Technical
Packaging Tape & Reel (TR)
Published 2015
Series HELI Colour
Size / Dimension 1.00mm Lx1.00mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
ECCN Code EAR99
Color Red, Green, Blue (RGB)
HTS Code 8541.40.20.00
Packing Method TR, 7 INCH
Number of Functions 1
Case Code (Metric) 1010
Case Code (Imperial) 0404
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Common Anode
Voltage - Forward (Vf) (Typ) 2V Red 3V Green 2.9V Blue
Viewing Angle 130° Red, 150° Green, 150° Blue
Optoelectronic Device Type TRIPLE COLOR LED
Current - Test 5mA Red 5mA Green 5mA Blue
Lens Style Square with Flat Top
Lens Size 1.00mm
Luminous Intensity 23 mcd
Millicandela Rating 30mcd Red, 80mcd Green, 23mcd Blue
Lens Transparency Clear
Wavelength - Peak 632nm Red 518nm Green 461nm Blue
Lens Color Colorless
Forward Current-Max 0.01A
Wavelength - Dominant 624nm Red 527nm Green 467nm Blue
Dimensions
Height 250μm
Compliance
RoHS Status ROHS3 Compliant
