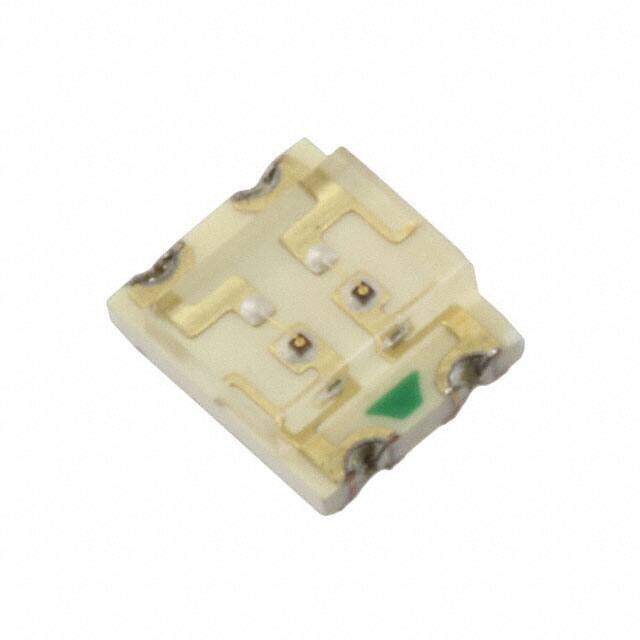

APB3227SURKCGKC
RoHS
RoHS compliant
RoHS compliantPackage 1210 (3225 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
Standard LEDs - SMD Hyper Red/Green 250/55MCD 630/570nm
PDF
/
Buying Options
Total Price: USD $0.53
Unit Price: USD $0.528
≥1 USD $0.528
≥10 USD $0.32384
≥100 USD $0.186032
≥500 USD $0.145587
Inventory: 1100
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2012
Size / Dimension 3.20mm Lx2.70mm W
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Green, Red
HTS Code 8541.40.20.00
Power Rating 75mW
Packing Method TAPE AND REEL 7"
Number of Functions 1
Terminal Pitch 3.5mm
Case Code (Metric) 3225
Case Code (Imperial) 1210
Configuration Independent
Voltage - Forward (Vf) (Typ) 2.1V Green 1.95V Red
Viewing Angle 140°
Optoelectronic Device Type DUAL COLOR LED
Forward Current 20mA
Current - Test 20mA Green 20mA Red
Lens Style Rectangle with Flat Top
Lens Size 2.00mmx2.70mm
Luminous Intensity 80 mcd
Millicandela Rating 55mcd Green, 80mcd Red
Illumination Color Green, Red
Lens Transparency Clear
Wavelength - Peak 574nm Green 645nm Red
Lens Color Colorless
Wavelength - Dominant 570nm Green 630nm Red
Dimensions
Height 1.1mm
Compliance
RoHS Status ROHS3 Compliant
