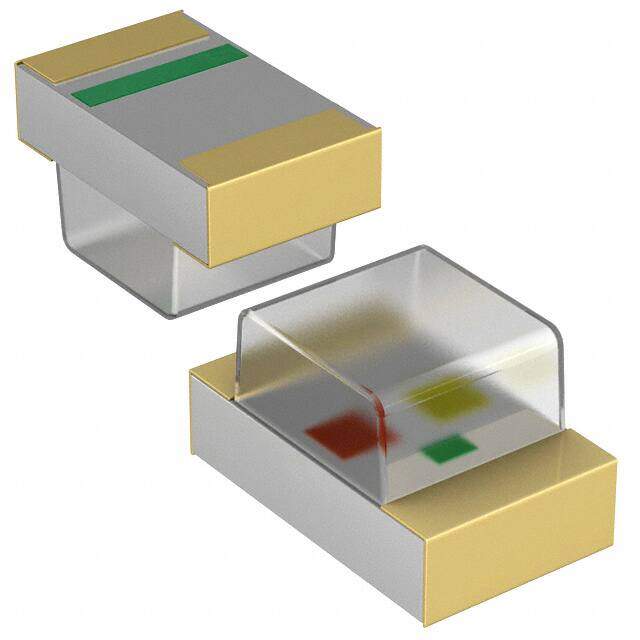

APB2012QBDCGKC image
Favorite
APB2012QBDCGKC image
Favorite

APB2012QBDCGKC

Kingbright
RoHS
/
Package 0805 (2012 Metric)
Category Optoelectronics / LED Indication - Discrete
Description Standard LEDs - SMD 2.0X1.2MM BLUE/GRN SMD LED
PDF
/
Inventory: 3573
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Supplier Device Package Chip LED

Technical

Packaging Tape & Reel (TR)
Published 2012
Size / Dimension 2.00mm Lx1.25mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Color Blue, Green
Case Code (Metric) 2012
Wavelength - Dominant 465nm Blue 570nm Green
Lens Color Colorless
Wavelength - Peak 460nm Blue 574nm Green
Lens Transparency Clear
Millicandela Rating 80mcd Blue, 50mcd Green
Luminous Intensity 50 mcd
Forward Voltage 2.1V
Lens Size 1.30mmx1.25mm
Lens Style Rectangle with Flat Top
Current - Test 20mA Blue 20mA Green
Viewing Angle 150°
Voltage - Forward (Vf) (Typ) 3.3V Blue 2.1V Green
Configuration Bidirectional
Case Code (Imperial) 0805

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Height (Max) 1.10mm
Width 1.25mm
Length 2mm
Height 1.1mm
