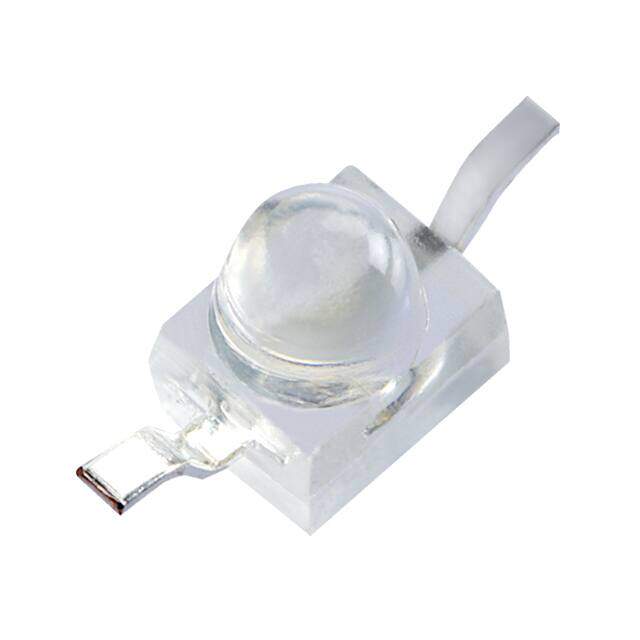

AM2520ZGCK09
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, Z-Bend
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN CLEAR SMD BOTTOM ENTRY
PDF
/
Buying Options
Total Price: USD $0.57
Unit Price: USD $0.572
≥1 USD $0.572
≥10 USD $0.352
≥100 USD $0.2024
Inventory: 17949
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 2.90mm
Technical
Wavelength - Dominant 525nm
Overall Height 1.3mm
Forward Current-Max 0.025A
Lens Color Colorless
Wavelength - Peak 515nm
Lens Transparency Clear
Millicandela Rating 2700mcd
Luminous Intensity 5800.0 mcd
Lens Size 1.90mm Dia
Lens Style Round with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 20°
Voltage - Forward (Vf) (Typ) 3.3V
Configuration Independent
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 5.05mm
Number of Functions 1
Packing Method TR, 7 INCH
Color Green
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 2.50mm Lx2.00mm W
Published 2017
Packaging Tape & Reel (TR)
Physical
Surface Mount YES
Package / Case 2-SMD, Z-Bend
Mounting Type Surface Mount, Bottom Entry
Supply Chain
Factory Lead Time 12 Weeks
