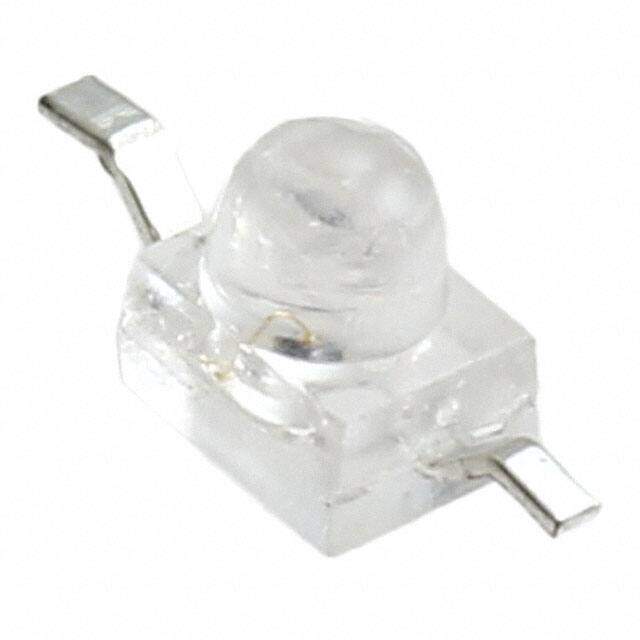

AM2520SRC09 image
Favorite
AM2520SRC09 image
Favorite

AM2520SRC09

Kingbright
RoHS
RoHS RoHS compliant
Package 2-SMD, Z-Bend
Category Optoelectronics / LED Indication - Discrete
Description Red 2.5 x 2 x 2.8 mm 20° Clear 800 mcd 1.85 V Subminiature Solid State LED SMT
PDF
/
Inventory: 8920
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount, Bottom Entry
Package / Case 2-SMD, Z-Bend

Technical

Packaging Tape & Reel (TR)
Published 2007
Size / Dimension 2.50mm Lx2.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Red
Additional Feature HIGH RELIABILITY
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Power Rating 75mW
Packing Method TAPE AND REEL 7"
Number of Functions 1
Terminal Pitch 5.05mm
Configuration Standard
Power Dissipation 75mW
Voltage - Forward (Vf) (Typ) 1.85V
Viewing Angle 20°
T-code T-3/4
Wavelength - Dominant 640nm
Reverse Voltage 5V
Lens Color Colorless
Wavelength - Peak 655nm
Lens Transparency Clear
Millicandela Rating 600mcd
Luminous Intensity 800 mcd
Lens Size 1.90mm Dia
Lens Style Round with Domed Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Height 1.7mm
