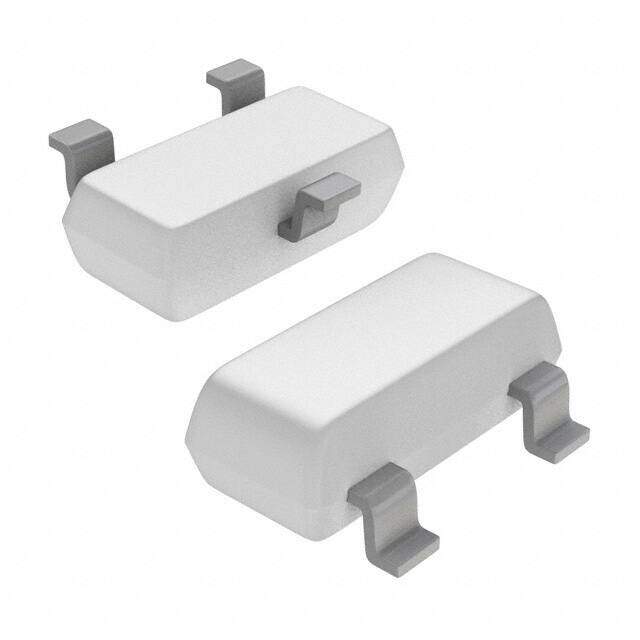

AM23ESGC
RoHS
RoHS compliant
RoHS compliantPackage TO-236-3, SC-59, SOT-23-3
Category Optoelectronics / LED Indication - Discrete
Description
Red-Green 3 x 1.3 x 1.05 mm 140° Clear 12/10 mcd 2/2.2 V LED Lamp SMT -SOT-23-3
PDF
/
Buying Options
Total Price: USD $0.56
Unit Price: USD $0.5632
≥1 USD $0.5632
≥10 USD $0.34848
≥100 USD $0.200376
≥500 USD $0.156781
Inventory: 1624
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2011
Size / Dimension 3.00mm Lx1.30mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 3
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Green, Red
Additional Feature HIGH RELIABILITY
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Packing Method TAPE AND REEL
Number of Functions 1
Configuration Common Cathode
Voltage - Forward (Vf) (Typ) 2.2V Green 2V Red
Viewing Angle 140°
Optoelectronic Device Type DUAL COLOR LED
Forward Current 20mA
Current - Test 20mA Green 20mA Red
Lens Style Rectangle with Flat Top
Lens Size 3.00mmx1.30mm
Luminous Intensity 5 mcd
Millicandela Rating 10mcd Green, 5mcd Red
Illumination Color Green, Red
Lens Transparency Clear
Wavelength - Peak 565nm Green 627nm Red
Lens Color Colorless
Forward Voltage-Max 2.5V
Wavelength - Dominant 568nm Green 617nm Red
Number of LEDs 2
Dimensions
Height 1.2mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
