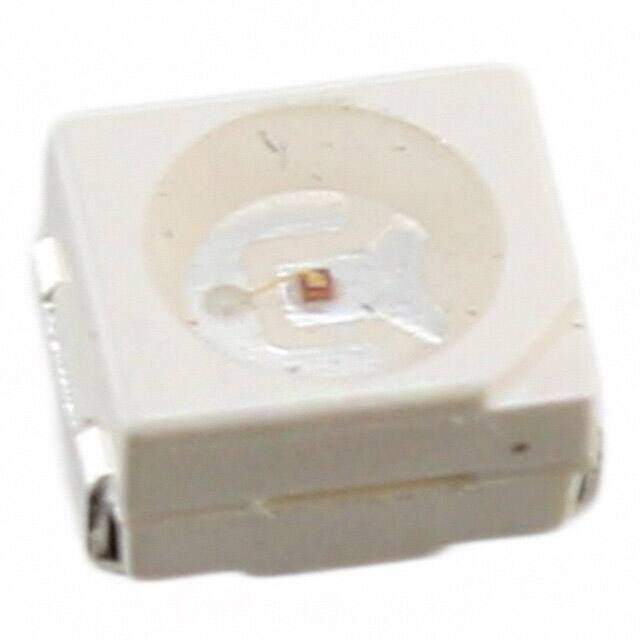

AA3528YS
RoHS
RoHS compliant
RoHS compliantPackage 2-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
LED YELLOW ROUND CLEAR SMD
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.3696
≥1 USD $0.3696
≥10 USD $0.24464
≥100 USD $0.163416
≥500 USD $0.113062
≥1000 USD $0.094213
Inventory: 1124
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2-PLCC
Number of Pins 2
Technical
Packaging Cut Tape (CT)
Published 2011
Size / Dimension 3.20mm Lx2.80mm W
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Yellow
Power Rating 75mW
Packing Method TAPE AND REEL 7"
Number of Functions 1
Terminal Pitch 3.1mm
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.1V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Luminous Intensity 20 mcd
Millicandela Rating 15mcd
Lens Transparency Clear
Wavelength - Peak 590nm
Lens Color Colorless
Wavelength - Dominant 588nm
Dimensions
Height 1.9mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
