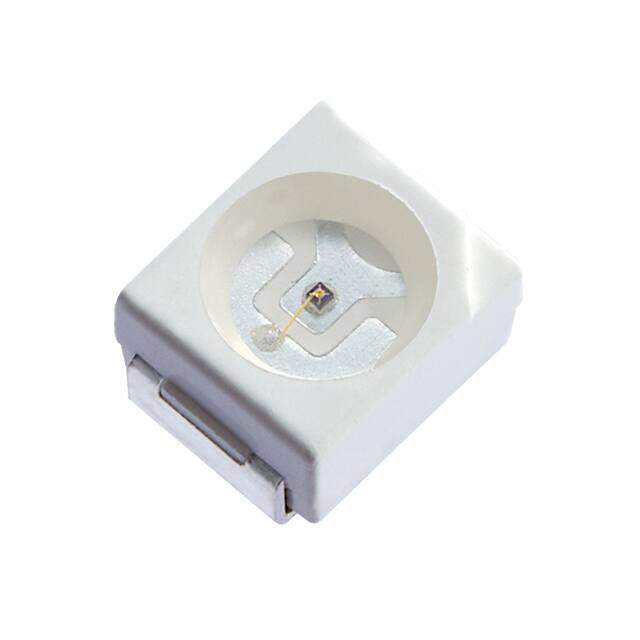

AA3528SURCK image
Favorite
AA3528SURCK image
Favorite

AA3528SURCK

Kingbright
RoHS
RoHS RoHS compliant
Package 2-PLCC
Category Optoelectronics / LED Indication - Discrete
Description Standard LEDs - SMD RED WATER CLEAR HYPERBRIGHT
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.396
≥1 USD $0.396
≥10 USD $0.24552
≥100 USD $0.141064
≥500 USD $0.110387
Inventory: 39812
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Height (Max) 2.15mm

Technical

Reverse Voltage-Max 5V
Wavelength - Dominant 630nm
Overall Height 1.8mm
Forward Voltage-Max 2.5V
Lens Color Colorless
Wavelength - Peak 645nm
Lens Transparency Clear
Millicandela Rating 350mcd
Luminous Intensity 200 mcd
Lens Size 2.40mm Dia
Lens Style Round with Flat Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 1.95V
Configuration Independent
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 3.1mm
Number of Functions 1
Packing Method TAPE AND REEL
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Color Red
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.20mm Lx2.80mm W
Published 2005
Packaging Tape & Reel (TR)

Physical

Package / Case 2-PLCC
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 12 Weeks
