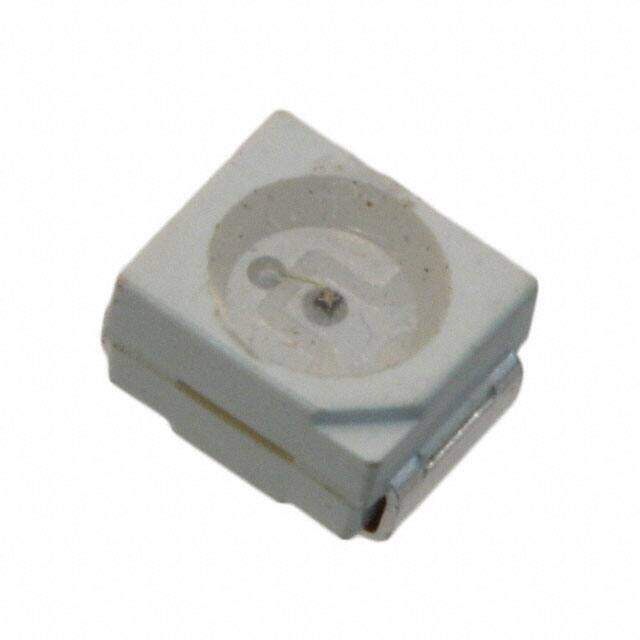

AA3528SESK
RoHS
RoHS compliant
RoHS compliantPackage 2-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
LED ORANGE ROUND CLEAR SMD
PDF
/
Buying Options
Total Price: USD $0.35
Unit Price: USD $0.352
≥1 USD $0.352
≥10 USD $0.23144
≥100 USD $0.154176
≥500 USD $0.106656
≥1000 USD $0.08888
Inventory: 1382
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 1.9mm
Technical
Wavelength - Dominant 601nm
Lens Color Colorless
Wavelength - Peak 610nm
Lens Transparency Clear
Millicandela Rating 230mcd
Luminous Intensity 350 mcd
Lens Size 2.40mm Dia
Lens Style Round with Flat Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2.1V
Configuration Standard
Terminal Pitch 3.1mm
Number of Functions 1
Packing Method TAPE AND REEL 7"
Power Rating 75mW
Color Orange
Min Operating Temperature -40°C
Max Operating Temperature 85°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 3.20mm Lx2.80mm W
Published 2011
Packaging Cut Tape (CT)
Physical
Number of Pins 2
Package / Case 2-PLCC
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
