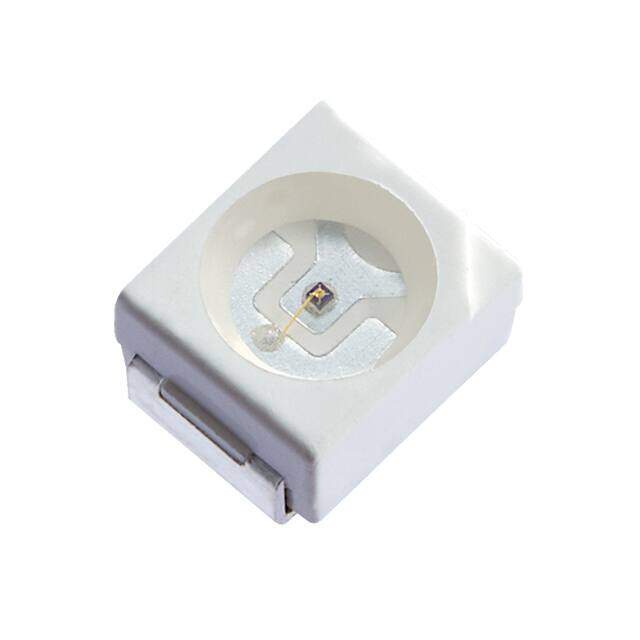

AA3528LSYCKT/J3
RoHS
RoHS compliant
RoHS compliantPackage 2-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
LED YELLOW CLEAR SMD
PDF
/
Buying Options
Total Price: USD $0.48
Unit Price: USD $0.484
≥1 USD $0.484
≥10 USD $0.31768
≥100 USD $0.210232
≥500 USD $0.162298
Inventory: 14885
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 2.15mm
Technical
Peak Wavelength 590 nm
Wavelength - Dominant 590nm
Overall Height 1.8mm
Forward Current-Max 0.05A
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 30mcd
Luminous Intensity 30.0 mcd
Lens Size 2.40mm Dia
Lens Style Round with Flat Top
Current - Test 2mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 1.85V
Configuration Independent
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 3.1mm
Number of Functions 1
Packing Method TR, 7 INCH
Color Yellow
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 3.20mm Lx2.80mm W
Published 2017
Packaging Tape & Reel (TR)
Physical
Surface Mount YES
Package / Case 2-PLCC
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
