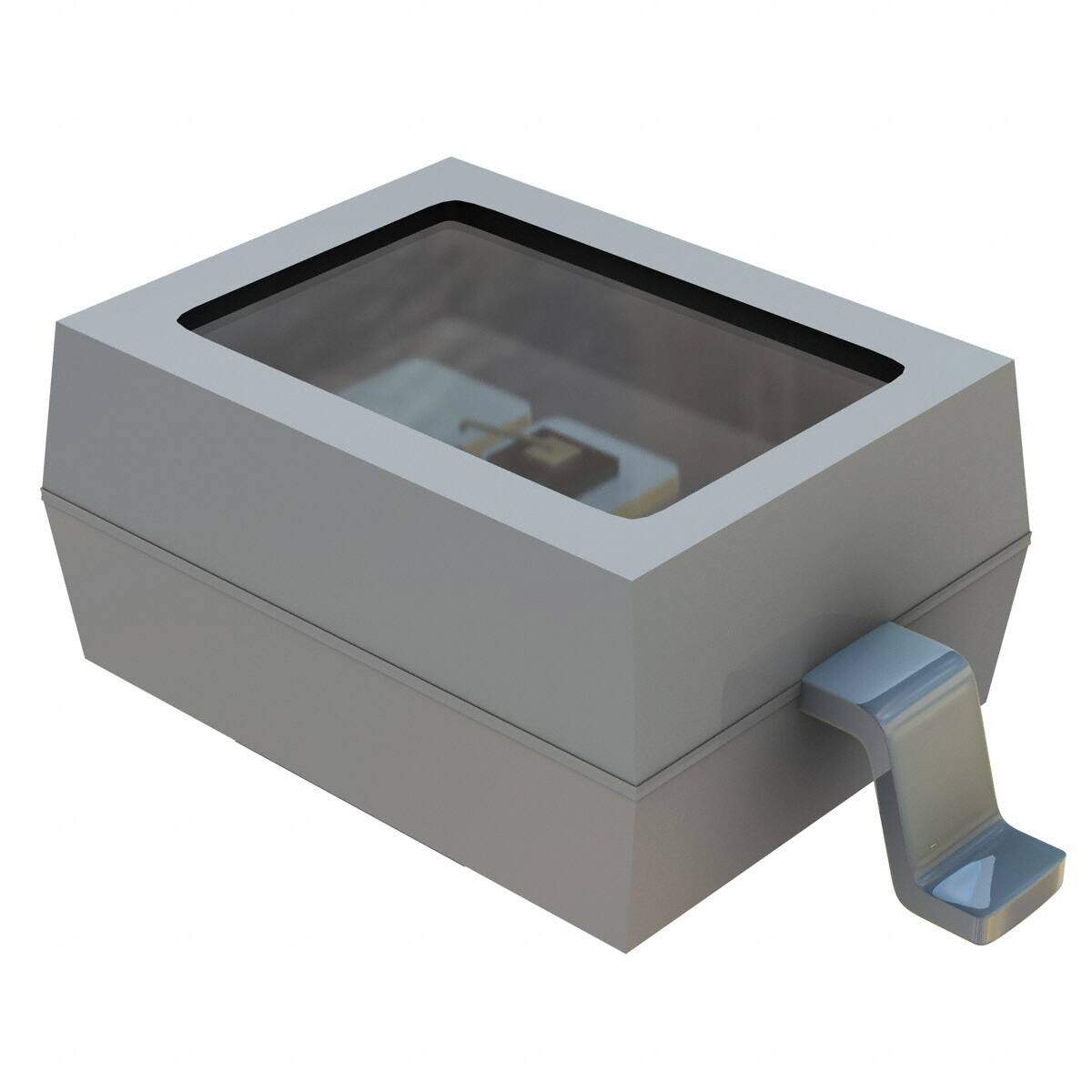

AA3022SGC-4.5SF image
Favorite
AA3022SGC-4.5SF image
Favorite

AA3022SGC-4.5SF

Kingbright
RoHS
RoHS RoHS compliant
Package 2-SMD, Gull Wing
Category Optoelectronics / LED Indication - Discrete
Description LED 3X2.2MM 568NM GN WTR CLR SMD
PDF
/
Inventory: 1845
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2-SMD, Gull Wing
Shape RECTANGULAR

Technical

Packaging Tape & Reel (TR)
Size / Dimension 3.00mm Lx2.20mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 2
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Green
Subcategory Visible LEDs
Power Rating 62.5mW
Packing Method TAPE AND REEL
Number of Functions 1
Terminal Pitch 4.9mm
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.2V
Viewing Angle 90°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Rectangle with Flat Top
Lens Size 2.50mmx1.70mm
Luminous Intensity 20 mcd
Millicandela Rating 20mcd
Lens Transparency Clear
Wavelength - Peak 565nm
Lens Color Colorless
Forward Voltage-Max 2.5V
Wavelength - Dominant 568nm
Reverse Voltage-Max 5V

Dimensions

Height 1.5mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
