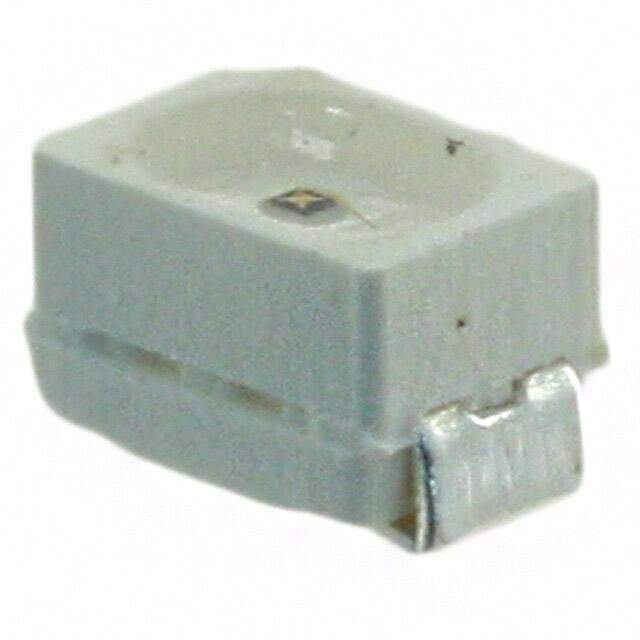

AA2214SYSK
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, J-Lead
Category Optoelectronics / LED Indication - Discrete
Description
2.2X1.4MM YELLOW SMD LED
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5456
≥1 USD $0.5456
≥10 USD $0.35816
≥100 USD $0.236984
≥500 USD $0.182952
Inventory: 7079
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 1.3mm
Technical
Peak Wavelength 590 nm
Wavelength - Dominant 590nm
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 250mcd
Luminous Intensity 250 mcd
Lens Size 1.65mmx1.15mm
Lens Style Oval with Flat Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2V
Configuration Standard
Terminal Pitch 2mm
Number of Functions 1
Packing Method TAPE AND REEL 7"
HTS Code 8541.40.20.00
Color Yellow
Min Operating Temperature -40°C
Max Operating Temperature 85°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 2.00mm Lx1.40mm W
Published 2011
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Package / Case 2-SMD, J-Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
