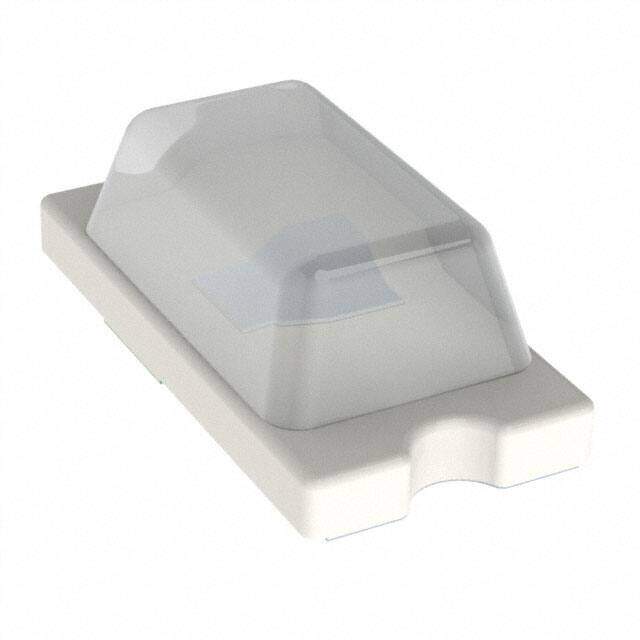

IN-S63BTY
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED YELLOW CLEAR 0603 SMD
PDF
/
Buying Options
Total Price: USD $0.27
Unit Price: USD $0.266774
≥1 USD $0.266774
≥10 USD $0.251675
≥100 USD $0.23743
≥500 USD $0.223988
≥1000 USD $0.211313
Inventory: 1163
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 0.60mm
Technical
Wavelength - Dominant 591nm
Overall Height 0.55mm
Forward Current-Max 0.025A
Lens Color Clear
Wavelength - Peak 592nm
Millicandela Rating 100mcd
Luminous Intensity 100.0 mcd
Lens Size 1.20mmx0.80mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2V
Configuration Standard
Operating Temperature (Min) -30°C
Operating Temperature (Max) 85°C
Terminal Pitch 1.4mm
Number of Functions 1
Packing Method TR, 7 INCH
Additional Feature HIGH RELIABILITY
Color Yellow
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Discontinued
Size / Dimension 1.60mm Lx0.80mm W
Series IN-S63BT
Published 2017
Packaging Cut Tape (CT)
Physical
Shape RECTANGULAR
Surface Mount YES
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
