QTLP630CAGTR
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED YELLOW/GREEN CLEAR 0805 SMD
PDF
/
Inventory: 3256
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Number of Pins 2
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2001
Size / Dimension 2.00mm Lx1.25mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Yellow-Green
Subcategory Visible LEDs
Packing Method TAPE AND REEL 7"
Number of Functions 1
Depth 1.45mm
Number of Elements 1
Configuration Standard
Power Dissipation 72mW
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 140°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Rectangle with Flat Top
Lens Size 1.40mmx1.25mm
Luminous Intensity 15 mcd
Illumination Color Green
Lens Transparency Clear
Wavelength - Peak 575nm
Lens Color Colorless
Reverse Voltage 5V
Wavelength - Dominant 573nm
Dimensions
Height 1.2mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant

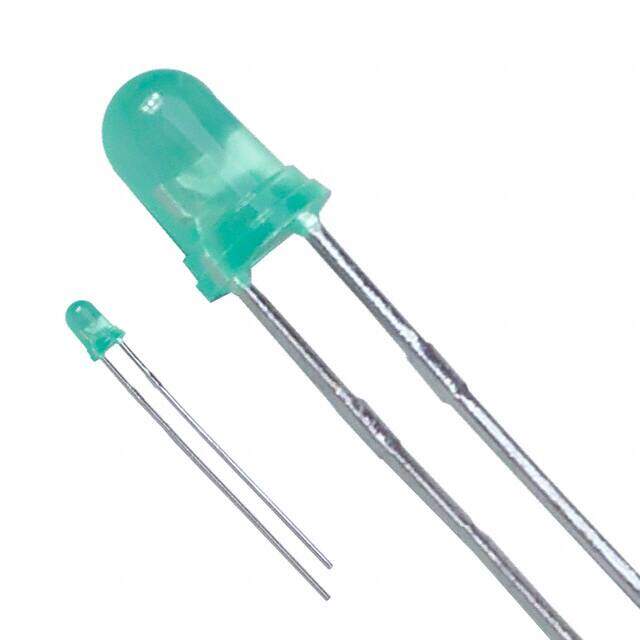

Alternative Model
